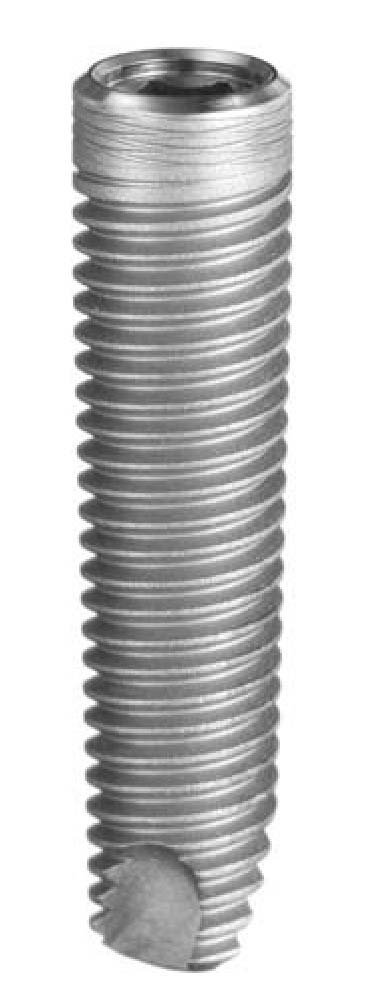

I2 By AB Dental Devices®

Technical Features

Material: Titanium Alloy
Level: Bone Level
Connection Type: Internal
Connection Shape: Hexagon
Head Shape: Straight
Head Microthreads: Yes
Body Shape: Tapered Apex
Body Threads: V Shaped
Apex Shape: Flat
Apex Hole: No Hole
Apex Grooves: Yes

PDF Catalog Order Compatible Components Contact us

Identify a dental implant

Learn more

Connection

Internal Hexagon

Screwdriver

Platforms

narrow 3.75mm
wide 4.5mm

Platform specifications and compatibilities

Dimensions

Length \ Diameter	3.50mm	5.00mm
8.00mm	12
10.00mm		✔

Compatible Components

Components compatible with AB Dental Devices® I2®

Browse compatible components

Description

I2 is a standard dental implant produced by AB Dental Devices. Its connection is internal, with a hexagon shape with internal bevel. It's a bone level implant. Its body is tapered apex with v shaped threads. Its head is straight and has microthreads. Its head has a bevel. Its apex has a flat shape, doesn't have a hole, and has grooves. It is made of titanium alloy. This implant model is quite old. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. AB Dental Devices also offers 21 other implant models.
Specs:
Tube top colors (indicating the CAT no. D (mm) Platform L (mm) final drill color) 12 3.5 Standard 8. 10. 11.5. 13. 16 12 3.75 Standard 8. 10. 11.5. 13. 16 12 4.2 Standard 8. 10. 11.5. 13. 16 12 4.5 Standard 8. 10. 11.5. 13. 16 12 5 Standard 8. 10. 11.5. 13. 16 12 6 Standard 8. 10. 11.5. 13. 16

Components compatible with AB Dental Devices® I2®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
