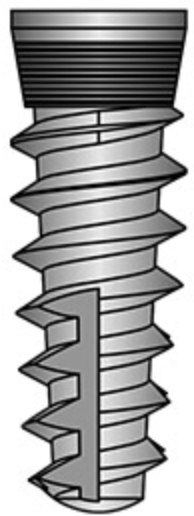

Top Conical By Avenir®

Technical Features

Level: Bone Level
Connection Type: Internal
Connection Shape: Hexagon
Head Shape: Flared
Head Microthreads: Yes
Body Shape: Tapered
Body Threads: V Shaped
Apex Shape: Dome
Apex Hole: No Hole
Apex Grooves: Yes

PDF Catalog Order Compatible Components Contact us Manufacturer Page

Identify a dental implant

Learn more

Screwdriver

Dimensions

Length \ Diameter	4.00mm	5.00mm	6.00mm
8.00mm	TOIC4008(P:4.00mm)	TOIC5008(P:5.00mm)	TOIC6008(P:6.00mm)
10.00mm	TOIC4010(P:4.00mm)	TOIC5010(P:5.00mm)	TOIC6010(P:6.00mm)
11.50mm	TOIC4011(P:4.00mm)	TOIC5011(P:5.00mm)	TOIC6011(P:6.00mm)
13.00mm	TOIC4013(P:4.00mm)	TOIC5013(P:5.00mm)	TOIC6013(P:6.00mm)
16.00mm	TOIC4016(P:4.00mm)	TOIC5016(P:5.00mm)	TOIC6016(P:6.00mm)

Compatible Components

Components compatible with Avenir® Top Conical®

Browse compatible components

Description

Top Conical is a standard dental implant produced by Avenir. Its connection is internal, with a hexagon shape with none. It's a bone level implant. Its body is tapered with v shaped threads. Its head is flared and has microthreads. Its apex has a dome shape, doesn't have a hole, and has grooves. It is available in 3 different diameters and 5 different lengths. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. Avenir also offers 9 other implant models.

Components compatible with Avenir® Top Conical®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
