SDI Spiral Implant By Bioline Dental (Sigal Medical)®

Description

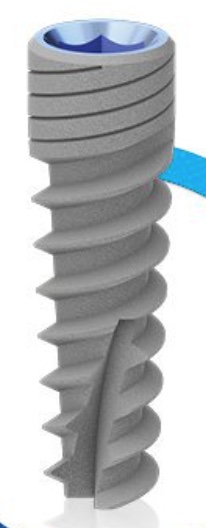

SDI Spiral Implant is a standard dental implant produced by Bioline Dental (Sigal Medical). It's a bone level implant. Its connection is internal, with a hexagon shape with internal bevel. Its body is tapered with v shaped threads. Its head is straight and has microthreads. Its head has a bevel. Its apex has a flat shape, doesn't have a hole, and has grooves. It is available in 7 different diameters and 7 different lengths. It requires a screwdriver of hexagon shape. We don't have a catalog available for this model. Bioline Dental (Sigal Medical) also offers 8 other implant models.
Specs:
Dia 2.9 3.5 3.75 4.2 5.0 6.0 6 BIO-F3506 BIO-F3706 BIO-F4206 BIO-F5006 BIO-F6006 8 *BIO-F2908 BIO-F3508 BIO-F3708 BIO-F4208 BIO-F5008 BIO-F6008 10 *BIO-F2910 BIO-F3510 BIO-F3710 BIO-F4210 BIO-F5010 BIO-F6010 11.5 *BIO-F2911 BIO-F3511 BIO-F3711 BIO-F4211 BIO-F5011 BIO-F6011 13 *BIO-F2913 BIO-F3513 BIO-F3713 BIO-F4213 BIO-F5013 BIO-F6013 16 *BIO-F2916 BIO-F3516 BIO-F3716 BIO-F4216 BIO-F5016 2.1 mm hex slim version The apical diameter is thinner than the Crestal diameter in 0.5 mm, included all implants sizes.

Components compatible with Bioline Dental (Sigal Medical)® SDI Spiral Implant®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
