Certain PREVAIL (Straight Head) main image

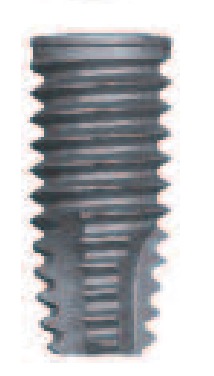

Certain PREVAIL (Straight Head) By Biomet 3i®

Technical Features

Material: Titanium Alloy
Level: Bone Level
Connection Type: Internal
Connection Shape: Hexagon
Head Shape: Straight
Head Microthreads: No
Body Shape: Tapered Apex
Body Threads: V Shaped
Apex Shape: Flat
Apex Hole: No Hole
Apex Grooves: Yes

PDF Catalog Order Compatible Components Contact us

Identify a dental implant

Learn more

Connection

Internal Hexagon

Screwdrivers

Platforms

3.4mm
4.1mm
4.1mm
5mm

Platform specifications and compatibilities

Dimensions

Length \ Diameter	4.00mm	5.00mm
8.50mm	IIOS4385(P:3.40mm) NIIOS4385(P:4.10mm)	IIOS5485(P:4.10mm) NIIOS5485(P:5.00mm)
10.00mm	IIOS4310(P:3.40mm) NIIOS4310(P:4.10mm)	IIOS5410(P:4.10mm) NIIOS5410(P:5.00mm)
11.50mm	IIOS4311(P:3.40mm) NIIOS4311(P:4.10mm)	NIIOS5411(P:5.00mm) IIOS5411(P:4.10mm)
13.00mm	NIIOS4313(P:4.10mm) IIOS4313(P:3.40mm)	IIOS5413(P:4.10mm) NIIOS5413(P:5.00mm)
15.00mm	IIOS4315(P:3.40mm) NIIOS4315(P:4.10mm)	IIOS5415(P:4.10mm) NIIOS5415(P:5.00mm)

Compatible Components

Components compatible with Biomet 3i® Certain PREVAIL (Straight Head)®

Browse compatible components

Description

Certain PREVAIL (Straight Head) is a standard dental implant produced by Biomet 3i. It's a bone level implant. Its connection is internal, with a hexagon shape with none. Its body is tapered apex with v shaped threads. Its head is straight. Its apex has a flat shape, doesn't have a hole, and has grooves. It is made of titanium alloy.It is available in 4 different platforms. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. Biomet 3i also offers 24 other implant models.
Specs:
Nano Tite™ Certain PREVAIL Implants 3.4 1 F411 F411 5.0 - -4.1-| -4.1-| -4.8-| -5.0- 5.8 Full 5= 1.5 5= 1.5 NanoTite Surface 3,25 < to 4.0 < 5.0 5.0 12.41 12.61 2.61 F3.11 13.11 Length 3/4/3mm (P) 4/3mm (P) 4/5/4mm (P) 5/4mm (P) 5/6/5mm (P) 8.5mm NIIOS3485 NIIOS4385 NIIOS4585 NIIOS5485 NIIOS5685 10.0mm NIIOS3410 NIIOS4310 NIIOS4510 NIIOS5410 NIIOS5610 11.5mm NIIOS3411 NIIOS4311 NIIOS4511 NIIOS5411 NIIOS5611 13.0mm NIIOS3413 NIIOS4313 NIIOS4513 NIIOS5413 NIIOS5613 15.0mm NIIOS3415 NIIOS4315 NIIOS4515 NIIOS5415 NIIOS5615 Cover Screw Flat (included) IMCSF34 IMCSF34 ICSF41 ICSF41 ICSF50 Cover Screw Headless N/A N/A ICS275 ICS275 ICS275 Cover Screw 1mm(H) IMMCS1 IMMCS1 ICS375 ICS375 ICS500

Components compatible with Biomet 3i® Certain PREVAIL (Straight Head)®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
