Isy Kone 2.9 By Biotec (BTK)®

Technical Features

Identify a dental implant

Learn more

Dimensions

Length \ Diameter 2.90mm
8.00mm 129KN29J(P:2.80mm)
10.00mm 129KN29L(P:2.80mm)
12.00mm 129KN29N(P:2.80mm)
14.00mm 129KN29Q(P:2.80mm)

Description

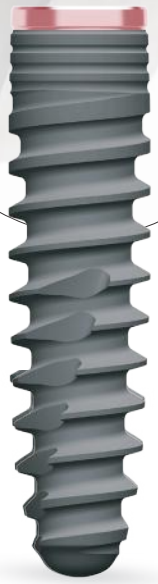

Isy Kone 2.9 is a standard dental implant produced by Biotec (BTK). Its connection is internal, with a hexagon shape with none. It's a bone level implant. Its head is straight and has microthreads. Its body is tapered with v shaped threads. Its apex has a dome shape, doesn't have a hole, and doesn't have grooves. We don't have a catalog available for this model. Biotec (BTK) also offers 30 other implant models.
Specs:
implant length in mm B APEX TIP mm 01 8 10 12 14 16 18 A mm D B KONIC NARROW KN (konic narrow) (KN) C M1.6 occlusal thread / prosthetic platform Ø 2.8 mm / smooth neck portion 0.5 mm 2,9 129KN29J 129KN29L 129KN29N 129KN29Q 1.7 D
