Isy Kone MT main image

Isy Kone MT By Biotec (BTK)®

Technical Features

Identify a dental implant

Learn more

Connection

Hexagon Internal Hexagon with morse taper

Platforms

  • default
Platform specifications and compatibilities

Dimensions

Length \ Diameter 3.30mm 3.70mm 4.10mm 4.80mm
8.00mm 129KR37J 129KR41J 129KR48J
10.00mm 129KR33L 129KR37L 129KR41L 129KR48L
12.00mm 129KR33N 129KR37N 129KR41N 129KR48N
14.00mm 129KR33Q 129KR37Q 129KR41Q 129KR48Q
16.00mm 129KR37S 129KR41S

Compatible Components

Components compatible with Biotec (BTK)® Isy Kone MT®

Browse compatible components

Description

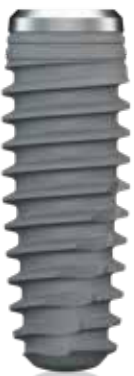

Isy Kone MT is a standard dental implant produced by Biotec (BTK). Its connection is internal, with a hexagon shape with morse taper. It's a bone level implant. Its body is tapered with reverse buttress threads. Its head is straight and has microthreads. Its head has a bevel. Its apex has a dome shape, doesn't have a hole, and has grooves. It is available in 4 different diameters and 5 different lengths. For more details, please refer to the catalog. Biotec (BTK) also offers 30 other implant models.

Components compatible with Biotec (BTK)® Isy Kone MT®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
