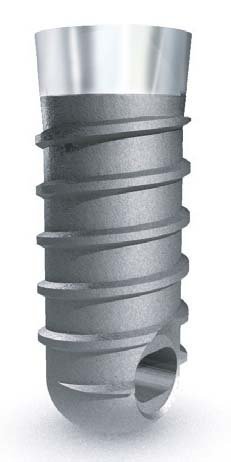

BIS Internal By Biotech Dental®

Technical Features

Material: CP Titanium
Level: Tissue Level
Connection Type: Internal
Connection Shape: Octagon
Head Shape: Flared
Head Microthreads: No
Body Shape: Straight
Body Threads: Rounded
Apex Shape: Dome
Apex Hole: Oblong
Apex Grooves: No

PDF Catalog Order Compatible Components Contact us Manufacturer Page

Identify a dental implant

Learn more

Screwdriver

Platforms

3.9mm
4.4mm
5.4mm

Dimensions

Length \ Diameter	3.90mm	4.40mm	5.40mm
8.00mm	3908	4408	5408
10.00mm	3910	4410	5410(P:1.00mm)
12.00mm	3912	4412	5412
14.00mm	3914	4414	5414
16.00mm	3916	4416	5416

Compatible Components

Components compatible with Biotech Dental® BIS Internal®

Browse compatible components

Description

BIS Internal is a standard dental implant produced by Biotech Dental. It's a tissue level implant. Its connection is internal, with a octagon shape with none. Its head is flared. Its body is straight with rounded threads. Its apex has a dome shape,has a hole of oblong shape, and doesn't have grooves. It is made of cp titanium. It is available in 3 different diameters and 5 different lengths.It is available in 3 different platforms. This implant model is quite old. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. Biotech Dental also offers 18 other implant models.
Specs:
Diamètre Longueur mm 8 10 12 14 16 mm 3.9 3908 3910 3912 3914 3916 Réf.: 4.4 4408 4410 4412 4414 4416 B.i.S 5.4 5408 5410 5412 5414 5416

Components compatible with Biotech Dental® BIS Internal®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
