Kontact N By Biotech Dental®

Technical Features

Level: Bone Level
Connection Type: Internal
Connection Shape: Six lobe
Head Shape: Straight
Head Microthreads: No
Body Shape: Tapered
Body Threads: V Shaped
Apex Shape: Dome
Apex Hole: No Hole
Apex Grooves: No

PDF Catalog Order Compatible Components Contact us Manufacturer Page

Identify a dental implant

Learn more

Connection

Internal Six lobe

Screwdriver

Dimensions

Length \ Diameter	3.00mm	3.60mm	4.20mm	4.80mm	5.40mm
6.00mm			K4206N	K4806N	K5406N
8.00mm		K3608N	K4208N	K4808N	K5408N
10.00mm	K3010N	K3610N	K4210N	K4810N	K5410N
12.00mm	K3012N	K3612N	K4212N	K4812N	K5412N
14.00mm	K3014N	K3614N	K4214N	K4814N	K5414N
16.00mm		K3616N	K4216N

Compatible Components

Components compatible with Biotech Dental® Kontact N®

Browse compatible components

Description

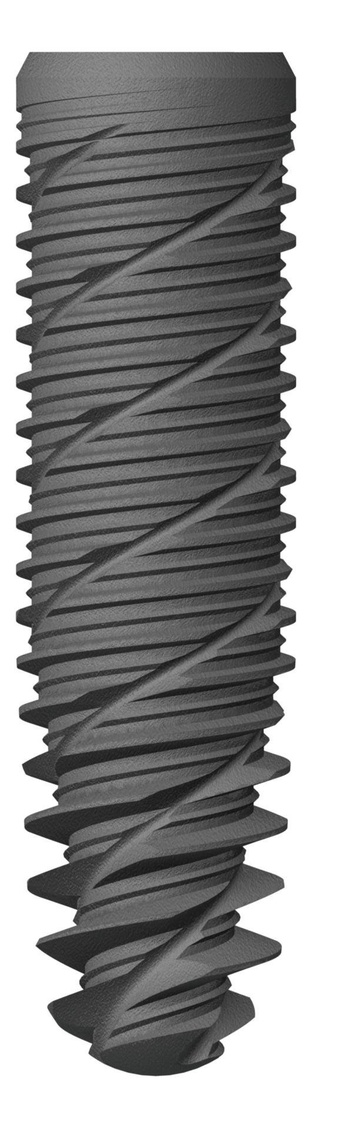

Kontact N is a standard dental implant produced by Biotech Dental. It's a bone level implant. Its connection is internal, with a six lobe shape with morse taper. Its head is straight. Its head has a bevel. Its body is tapered with v shaped threads. Its apex has a dome shape, doesn't have a hole, and doesn't have grooves. It is available in 5 different diameters and 6 different lengths. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. Biotech Dental also offers 19 other implant models.
Specs:
Références Diamètres Longueurs K3010N 10 mm K3012N 3 mm 12 mm K3014N 14 mm K3608N 8 mm will K3610N 10 mm K3612N 3.6 mm 12 mm K3614N 14 mm K3616N 16mm K4206N 6 mm K4208N 8 mm K421ON 10mm 0 4.2 mm K4212N 12mm K4214N 14mm K4216N 16mm K4806N 6 mm K4808N 8 mm ....l K481ON 0 4.8 mm 10 mm K4812N 12 mm K4814N 14 mm K5406N 6 mm K5408N 8 mm ....l K541ON 5.4 mm 10mm K5412N 12mm K5414N 14mm

Components compatible with Biotech Dental® Kontact N®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
