Kontact S By Biotech Dental®

Technical Features

Material: Titanium Alloy
Level: Bone Level
Connection Type: Internal
Connection Shape: Six lobe
Head Shape: Straight
Head Microthreads: No
Body Shape: Tapered Apex
Body Threads: Reverse Buttress
Apex Shape: Dome
Apex Hole: No Hole
Apex Grooves: Yes

PDF Catalog Order Compatible Components Contact us Manufacturer Page

Identify a dental implant

Learn more

Connection

Internal Six lobe

Screwdriver

Dimensions

Length \ Diameter	3.00mm	3.60mm	4.20mm	4.80mm	5.40mm
6.00mm			K4206S	K4806S	K5406S
8.00mm		K3608S	K4208S	K4808S	K5408S
10.00mm	K3010S	K3610S	K4210S	K4810S	K5410S
12.00mm	K3012S	K3612S	K4212S	K4812S	K5412S
14.00mm	K3014S	K3614S	K4214S	K4814S	K5414S
16.00mm		K3616S	K4216S

Compatible Components

Components compatible with Biotech Dental® Kontact S®

Browse compatible components

Description

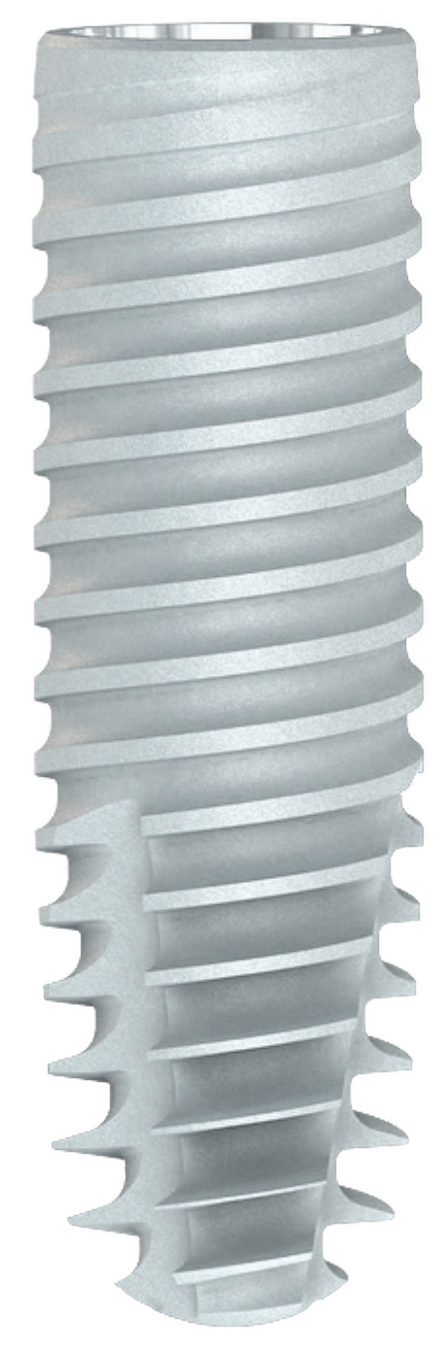

Kontact S is a standard dental implant produced by Biotech Dental. It's a bone level implant. Its connection is internal, with a six lobe shape with morse taper. Its body is tapered apex with reverse buttress threads. Its head is straight. Its apex has a dome shape, doesn't have a hole, and has grooves. It is made of titanium alloy. It is available in 5 different diameters and 6 different lengths. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. Biotech Dental also offers 18 other implant models.
Specs:
Références Diamètres Longueurs K3010S 10 mm K3012S Ø3 mm 12 mm K3014S 14 mm K3608S 8 mm K3610S 10 mm will K3612S Ø3,6mm 12 mm K3614S 14 mm K3616S* 16 mm K4206S 6 mm K4208S 8 mm K4210S 10 mm 0 4,2 mm K4212S 12 mm K4214S 14 mm K4216S* 16 mm K4806S 6 mm K4808S 8 mm K4810S 4,8 mm 10 mm K4812S 12 mm K4814S 14 mm K5406S 6 mm K5408S 8 mm K5410S Ø 5,4 mm 10 mm K5412S 12 mm K5414S 14 mm

Components compatible with Biotech Dental® Kontact S®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
