Vertical Neck Immediate By Biotype Implant System®

Technical Features

Identify a dental implant

Learn more

Dimensions

Length \ Diameter 3.30mm 3.70mm 4.10mm 4.80mm
8.00mm VNIRA08 VNIRD08 VNIRB08
10.00mm VNIRA10 VNIRD10 VNIRB10 VNIRC10
12.00mm VNIRA12 VNIRD12 VNIRB12
14.00mm VNIRD14 VNIRB14

Description

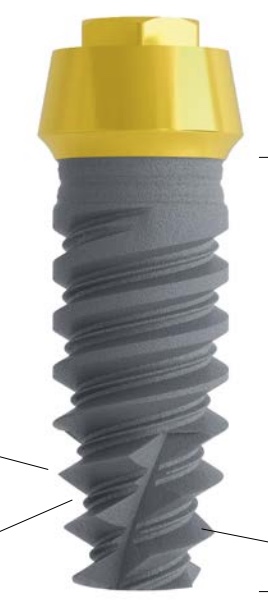

Vertical Neck Immediate is a standard dental implant produced by Biotype Implant System. It's a tissue level implant. Its connection is external, with a hexagon shape with none. Its head is flared and has microthreads. Its body is tapered with v shaped threads. Its apex has a flat shape, doesn't have a hole, and has grooves. It is available in 4 different diameters and 4 different lengths. We don't have a catalog available for this model. Biotype Implant System also offers 4 other implant models.
