Screw-Line By Camlog® Discontinued
Technical Features
Identify a dental implant
Learn moreConnection
Internal
Three spline
Screwdriver
Platforms
- 3.3mm
- 3.8mm
- 4.3mm
- 5mm
- 6mm
Dimensions
| Length \ Diameter | 3.30mm | 3.80mm | 4.30mm | 5.00mm | 6.00mm |
|---|---|---|---|---|---|
| 9.00mm |
J1052.3809
K1054-3809(P:3.50mm) K1044-3809(P:3.50mm) K1053.3809 |
K1044-4309(P:3.90mm)
J1052.4309 K1054-4309(P:3.90mm) K1052.4309 |
K1044-5009(P:4.60mm)
K1054-5009(P:4.60mm) |
K1044-6009(P:5.50mm)
K1054-6009(P:5.50mm) |
|
| 11.00mm |
J1052.3311
K1052.3311 K1054-3311(P:2.70mm) K1044-3311(P:2.70mm) |
K1054-3811(P:3.50mm)
K1052.3811 K1044-3811(P:3.50mm) |
K1054-4311(P:3.90mm)
K1044-4311(P:3.90mm) |
K1052.5011
K1044-5011(P:4.60mm) K1054-5011(P:4.60mm) |
K1044-6011(P:5.50mm)
K1052.6011 K1054-6011(P:5.50mm) |
| 13.00mm |
K1054-3113(P:2.70mm)
K1044-3313(P:2.70mm) K1052.3313 |
J1042.3813
K1054-3813(P:3.50mm) K1044-3813(P:3.50mm) K1053.3813 |
J1042.4313
K1052.4313 K1044-4313(P:3.90mm) K1054-4313(P:3.90mm) |
J1042.5013
K1054-5013(P:4.60mm) K1044-5013(P:4.60mm) |
K1044-6013(P:5.50mm)
K1054-6013(P:5.50mm) |
| 16.00mm |
K1044-3316(P:2.70mm)
J1052.3316 K1054-3116(P:2.70mm) |
K1054-3816(P:3.50mm)
K1044-3816(P:3.50mm) |
K1044-4316(P:3.90mm)
K1054-4316(P:3.90mm) |
K1044-5016(P:4.60mm)
K1054-5016(P:4.60mm) |
K1054-6016(P:5.50mm)
K1044-6016(P:5.50mm) |
Compatible Components
Components compatible with Camlog® Screw-Line®
Description

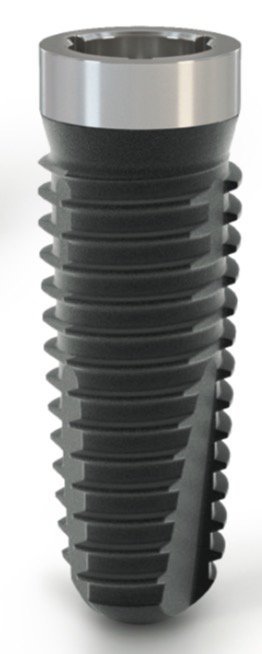

Screw-Line is a standard dental implant produced by Camlog and has now been discontinued. It's a bone level implant. Its connection is internal, with a three spline shape with none. Its body is tapered with v shaped threads. Its head is wide. Its apex has a dome shape, doesn't have a hole, and has grooves. It is made of cp titanium. It is available in 5 different diameters and 4 different lengths.It is available in 5 different platforms. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. Camlog also offers 12 other implant models.
Specs:
Article Art. No. 0 L AØ K1044.3311 11 mm K1044.3313 3.3 mm 13 mm 2.7 mm K1044.3316 16 mm K1044.3809 9 mm K1044.3811 11 mm 3.8 mm 3.5 mm K1044.3813 13 mm K1044.3816 16 mm CAMLOGR SCREW-LINE K1044.4309 9 mm Implant, Promote incl. insertion post K1044.4311 11 mm 4.3 mm 3.9 mm and cover screw, sterile K1044.4313 13 mm K1044.4316 16 mm Material Titanium Grade 4 K1044.5009 9 mm K1044.5011 11 mm 5.0 mm 4.6 mm K1044.5013 13 mm K1044.5016 16 mm K1044.6009 9 mm K1044.6011 11 mm 6.0 mm 5.5 mm K1044.6013 13 mm K1044.6016 16 mm K1054.3311 11 mm K1054.3313 3.3 mm 13 mm 2.7 mm K1054.3316 16 mm K1054.3809 9 mm K1054.3811 11 mm 3.8 mm 3.5 mm K1054.3813 13 mm K1054.3816 16 mm CAMLOG® SCREW-LINE K1054.4309 9 mm Implant, Promote plus incl. insertion post K1054.4311 11 mm 4.3 mm 3.9 mm and cover screw, sterile K1054.4313 13 mm K1054.4316 16 mm Material Titanium Grade 4 K1054.5009 9 mm K1054.5011 11 mm 5.0 mm 4.6 mm K1054.5013 13 mm K1054.5016 16 mm K1054.6009 9 mm K1054.6011 11 mm 6.0 mm 5.5 mm K1054.6013…
Components compatible with Camlog® Screw-Line®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers.
Available for different platforms.

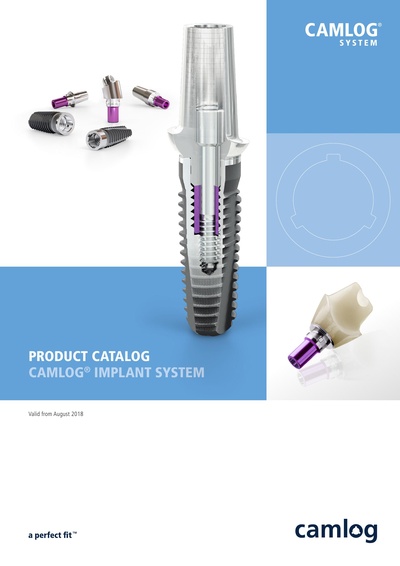

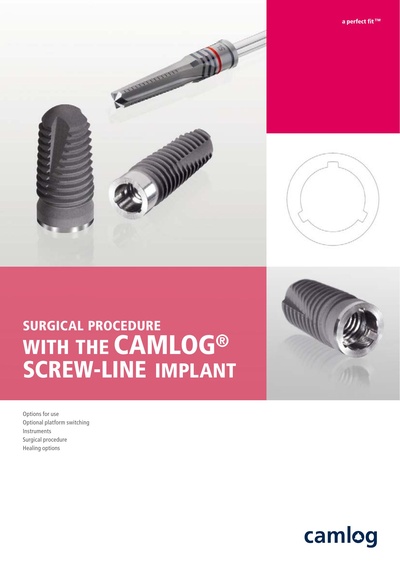

Catalogs
