CHAORUM By Chaorum & Honorst®

Technical Features

Identify a dental implant

Learn more

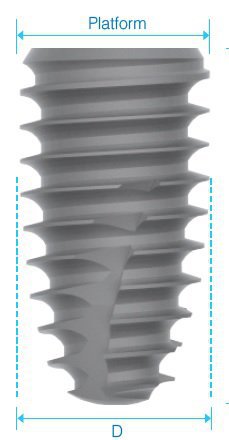

Dimensions

Length \ Diameter 4.00mm 4.50mm 5.00mm 6.00mm
7.30mm PSFR4007(P:4.30mm) PSFR4507(P:4.50mm) PSPW5007(P:6.00mm) PSPW6007(P:6.00mm)
8.50mm PSFR4008(P:4.30mm) PSFR4508(P:4.50mm) PSPW5008(P:6.00mm) PSPW6008(P:6.00mm)
10.00mm PSFR4010(P:4.30mm) PSFR4510(P:4.50mm) PSPW5010(P:6.00mm) PSPW6010(P:6.00mm)
11.50mm PSFR4011(P:4.30mm) PSFR4511(P:4.50mm) PSPW5011(P:6.00mm) PSPW6011(P:6.00mm)
13.00mm PSFR4013(P:4.30mm) PSFR4513(P:4.50mm) PSPW5013(P:6.00mm) PSPW6013(P:6.00mm)

Description

CHAORUM is a standard dental implant produced by Chaorum & Honorst. Its connection is internal, with a hexagon shape with morse taper. It's a bone level implant. Its body is tapered with buttress threads. Its head is straight. Its head has a bevel. Its apex has a dome shape, doesn't have a hole, and has grooves. It is available in 4 different diameters and 5 different lengths. For more details, please refer to the catalog. Chaorum & Honorst also offers 2 other implant models.
Specs:
MEDMICOA MIDIMICOA Mini Regular CHAORUM PT SLA Fixture D 04.0 NATURAL-LOOKING ESTHETICS R HEX 2.5 Built-ir platform shifting designed to increase soft tissue volume Long-term esthetic appearance MANDIBLE STRONG SEALED CONNECTION Advanced internal conical connection with hexagonal interlocking offers MAXILLA Length 7.3 8.5 10.0 11.5 13.0 a tight seal and high mechanical strength Creating a strong and perfect stable fit between fixture and abutment Product Code PSFR4007 PSFR4008 PSFR4010 PSFR4011 PSFR4013 Simple restoration process Mei EASY AND SMOOTH INSERTION MICSMI2 Macro thread or easy insertion Fast and controlledbone penetration Excellent bone grip. Reduces pressure on bone. D 04.5 Plaform 04.5 High primary stability R HEX 2.5 D MAXIMUM BONE PRESERVATION Regular Apex with drilling blades enables smaller osteotomy MANDIBLE Material grade4 titanium MAXILLA Length 7.3 8.5 10.0 11.5 13.0 S. L. A. Sandblast Large grit Acid etching Enhance the rate of osseointegration Raise the rate of …

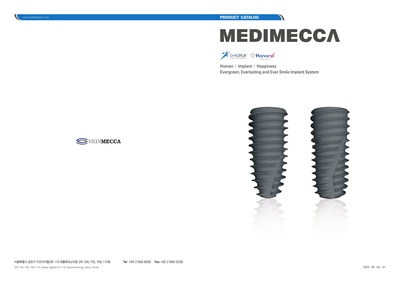

Catalogs
