HONORST By Chaorum & Honorst®

Technical Features

Level: Bone Level
Connection Type: Internal
Connection Shape: Hexagon
Head Shape: Straight
Head Microthreads: No
Body Shape: Straight
Body Threads: V Shaped
Apex Shape: Dome
Apex Hole: No Hole
Apex Grooves: Yes

PDF Catalog

Identify a dental implant

Learn more

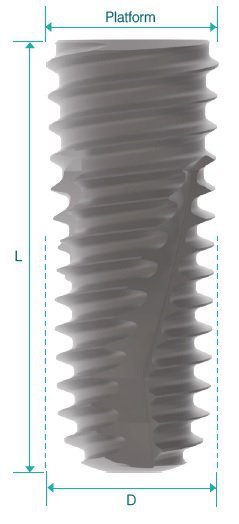

Dimensions

Length \ Diameter	3.50mm	4.00mm	4.50mm	5.00mm	5.50mm	6.00mm
7.00mm		HSF4007(P:4.20mm)	HSF4507(P:4.60mm)	HSF5007(P:6.10mm)	HSF5507(P:6.50mm)	HSF6007(P:6.00mm)
8.00mm						HSF6008(P:6.00mm)
8.50mm	HSF3508M(P:3.75mm)	HSF4008(P:4.20mm)	HSF4508(P:4.60mm)	HSF5008(P:6.10mm)	HSF5508(P:6.50mm)
9.50mm						HSF6010(P:6.00mm)
10.00mm	HSF3510M(P:3.75mm)	HSF4010(P:4.20mm)	HSF4510(P:4.60mm)	HSF5010(P:6.10mm)	HSF5510(P:6.50mm)
11.00mm						HSF6011(P:6.00mm)
11.50mm	HSF3511M(P:3.75mm)	HSF4011(P:4.20mm)	HSF4511(P:4.60mm)	HSF5011(P:6.10mm)	HSF5511(P:6.50mm)
12.50mm						HSF6013(P:6.00mm)
13.00mm	HSF3513M(P:3.75mm)	HSF4013(P:4.20mm)	HSF4513(P:4.60mm)	HSF5013(P:6.10mm)	HSF5513(P:6.50mm)

Description

HONORST is a standard dental implant produced by Chaorum & Honorst. Its connection is internal, with a hexagon shape with morse taper. It's a bone level implant. Its head is straight. Its body is straight with v shaped threads. Its apex has a dome shape, doesn't have a hole, and has grooves. It is available in 6 different diameters and 9 different lengths. For more details, please refer to the catalog. Chaorum & Honorst also offers 2 other implant models.
Specs:
Mri Regular HONORST SLA Fixture D 04.5 Active Double Thread Sharp Cutting Edge Pauform R HEX 2.5 Prevents bone necrosis Powerful self tapping Reinforce Fixture strength Easy to change the path High initial stability MANDIBLE -Her 12 MAXILLA Length 7.0 8.5 10.0 11.5 13.0 Taper Design Axe Bit Thread Product Code Excellent self drilling - Double lead thread HSF4507 HSF4508 HSF4510 HSF4511 HSF4513 Increase initial stability Keep Implant path High initial stability * Recommend 40Nom R D 05.0 Regular HEX 2.5 The focture bigger than 04.1 clameter is recommanded to be placed in postarior area HSCSADE o MANDIBLE Mini Regular MAXILLA Length 7.0 8.5 10.0 11.5 13.0 Product Code HSF5007 HSF5008 HSF5010 HSF5011 HSP5013 M D 03.5 HEX 2.1 R D 05.5 HEX 2.5 MANDIBLE MANDIBLE MAXILLA Lengh 8.5 10.0 11.5 13.0 MAXILLA Length 7.0 8.5 10.0 11.5 13.0 Product Code HSF3508M HSF3510M HSF3511M HSF3513M Product Code HSF5507 HSF5508 HSF5510 HSF5511 HSF5513 R D 04.0 D 06.0 HEX 2.5 R HEX 2.5 MANDIBLE MANDIBLE MAXILLA…
