Dynamix Internal HEX By Cortex®

Description

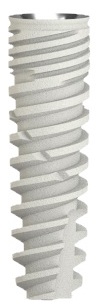

Dynamix Internal HEX is a standard dental implant produced by Cortex. It's a bone level implant. Its connection is internal, with a hexagon shape with internal bevel. Its head is straight and has microthreads. Its body is tapered with square threads. Its apex has a flat shape, doesn't have a hole, and has grooves. It is made of titanium alloy. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. Cortex also offers 12 other implant models.
Specs:
DYNAMÍX High initial stability 2 Passive Thickening threads and wide pitch (gap) provide high Rings bone grip and initial stability Two passive rings to allow biological width adaptation Implant top part - four threads : 4 Threads Two continuing of the base threads and two new threads Extra cortical bone grip Critical for sinus lift procedure Patent Pending - "Locking elements" - extra resistance for anti rotational forces [Patent Pending] I 1 1 Excellent bone cutting capacity - 1 1 Narrow, long and sharp apical starting 1 1 thread 1 Bone preservation Easy bone penetration Precise cutting Milling cutting edges Incorrect Sharp and precise bone cutting Pre-drill Bone clearing Ability to change penetration angle during implantation in case of incorrect pre-drilling Dynamix Sizes & Dimentions mm L = 6 mm L = 8 mm L = 10 mm L= 11.5 mm L = 13 mm L = 16 mm Ø 0 = 3.8 mm - - PCSD-0838 BCSD-0838 PCSD-1038 BCSD-1038 PCSD-1138 BCSD-1138 PCSD-1338 BCSD-1338 PCSD-1638 BCSD-1638 0 = 4.2 mm - - PCSD-…

Components compatible with Cortex® Dynamix Internal HEX®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
