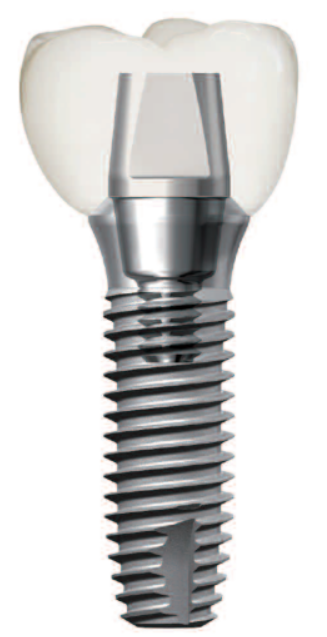

Simple Line II By Dentium®

Technical Features

Level: Tissue Level
Connection Type: Internal
Connection Shape: Octagon
Head Shape: Flared
Head Microthreads: No
Body Shape: Straight
Body Threads: Buttress
Apex Shape: Flat
Apex Hole: No Hole
Apex Grooves: Yes

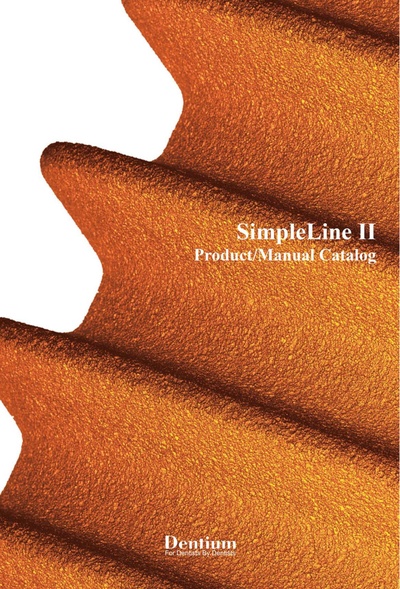

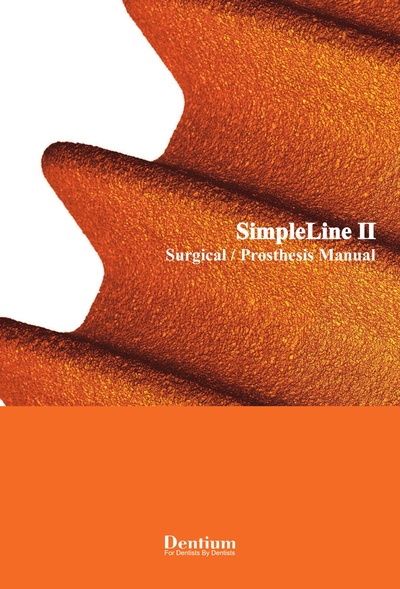

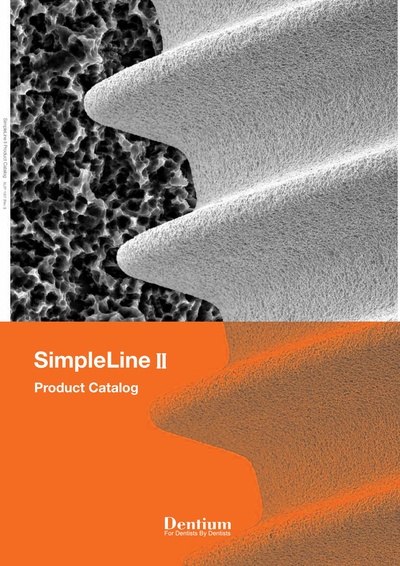

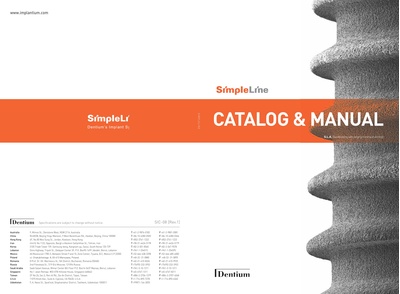

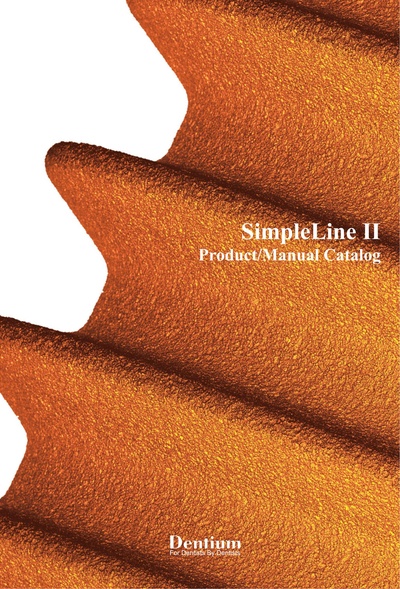

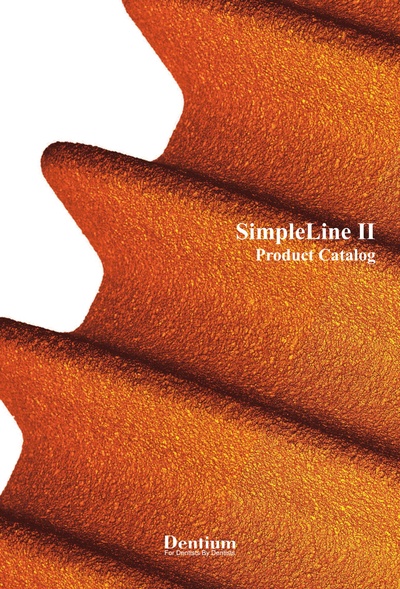

PDF Catalog Order Compatible Components Contact us

Identify a dental implant

Learn more

Connection

Internal Octagon

Screwdriver

Platforms

4.8mm
5.5mm
6.5mm

Platform specifications and compatibilities

Dimensions

Length \ Diameter	3.70mm	4.80mm	5.00mm	6.50mm
8.00mm	SOFX483408R(P:4.80mm) SOFX484308S(P:4.80mm) SOFX483408R(P:4.80mm) SOFX483808R(P:4.80mm) SOFX484308R(P:4.80mm) SOFX483808S(P:4.80mm) SOFX484308S(P:4.80mm) SOFX483808S(P:4.80mm) SOFX484308R(P:4.80mm) SOFX483808R(P:4.80mm)	SOFX483808(P:4.80mm) SOFX483408(P:4.80mm) SOFX483808(P:4.80mm) SOFX484308(P:4.80mm) SOFX483408(P:4.80mm) SOFX484308(P:4.80mm)	SOFX654808S(P:6.50mm) SOFX654308S(P:6.50mm) SOFX654308S(P:6.50mm) SOFX654808S(P:6.50mm) SOFX654808R(P:6.50mm) SOFX654308R(P:6.50mm) SOFX654808R(P:6.50mm) SOFX654308R(P:6.50mm)	SOFX654308(P:6.50mm) SOFX654308(P:6.50mm) SOFX654808(P:6.50mm) SOFX654808(P:6.50mm)
10.00mm	SOFX483810S(P:4.80mm) SOFX484310S(P:4.80mm) SOFX484310R(P:4.80mm) SOFX483810S(P:4.80mm) SOFX484310R(P:4.80mm) SOFX483410R(P:4.80mm) SOFX483810R(P:4.80mm) SOFX483410R(P:4.80mm) SOFX483810R(P:4.80mm) SOFX484310S(P:4.80mm)	SOFX483410(P:4.80mm) SOFX483810(P:4.80mm) SOFX484310(P:4.80mm) SOFX483810(P:4.80mm) SOFX484310(P:4.80mm) SOFX483410(P:4.80mm)	SOFX654310S(P:6.50mm) SOFX654810R(P:6.50mm) SOFX654310R(P:6.50mm) SOFX654810S(P:6.50mm) SOFX654310S(P:6.50mm) SOFX654810S(P:6.50mm) SOFX654310R(P:6.50mm) SOFX654810R(P:6.50mm)	SOFX654810(P:6.50mm) SOFX654310(P:6.50mm) SOFX654310(P:6.50mm) SOFX654810(P:6.50mm)
12.00mm	SOFX483812R(P:4.80mm) SOFX484312R(P:4.80mm) SOFX483812S(P:4.80mm) SOFX484312S(P:4.80mm) SOFX484312S(P:4.80mm) SOFX483412R(P:4.80mm) SOFX484312R(P:4.80mm) SOFX483812S(P:4.80mm) SOFX483412R(P:4.80mm) SOFX483812R(P:4.80mm)	SOFX483812(P:4.80mm) SOFX484312(P:4.80mm) SOFX483412(P:4.80mm) SOFX483812(P:4.80mm) SOFX484312(P:4.80mm) SOFX483412(P:4.80mm)	SOFX654312S(P:6.50mm) SOFX654312R(P:6.50mm) SOFX654812S(P:6.50mm) SOFX654812S(P:6.50mm) SOFX654812R(P:6.50mm) SOFX654312S(P:6.50mm) SOFX654312R(P:6.50mm) SOFX654812R(P:6.50mm)	SOFX654812(P:6.50mm) SOFX654812(P:6.50mm) SOFX654312(P:6.50mm) SOFX654312(P:6.50mm)

Compatible Components

Components compatible with Dentium® Simple Line II®

Browse compatible components

Description

Simple Line II is a standard dental implant produced by Dentium. Its connection is internal, with a octagon shape with morse taper. It's a tissue level implant. Its head is flared. Its head has a bevel. Its body is straight with buttress threads. Its apex has a flat shape, doesn't have a hole, and has grooves. It is available in 4 different diameters .It is available in 3 different platforms. This implant model is fairly recent. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. Dentium also offers 16 other implant models.

Components compatible with Dentium® Simple Line II®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
