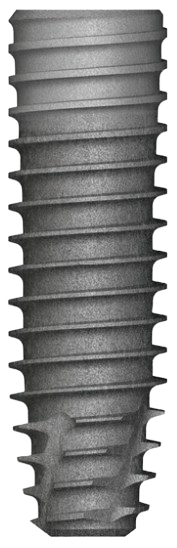

UFII Int. Submerged system Narrow main image

UFII Int. Submerged system Narrow By DIO Implant®

Technical Features

Level: Bone Level
Connection Type: Internal
Connection Shape: Hexagon
Head Shape: Straight
Head Microthreads: No
Body Shape: Tapered Apex
Body Threads: V Shaped
Apex Shape: Flat
Apex Hole: No Hole
Apex Grooves: Yes

Order Compatible Components Contact us

Identify a dental implant

Learn more

Connection

Hexagon

Dimensions

Length \ Diameter	3.00mm	3.30mm
8.50mm	UF(II) N3008S UF(II)N 3008 S	UF(II)N 3308 S UF(II) N3308S
10.00mm	UF(II) N3010S UF(II)N 3010 S	UF(II)N 3310 S UF(II) N3310S
11.50mm	UF(II) N3011S UF(II)N 3011 S	UF(II) N33311S UF(II)N 3311 S
13.00mm	UF(II) N3013S UF(II)N 3013 S	UF(II)N 3313 S UF(II) N3313S
15.00mm	UF(II)N 3015 S UF(II) N3015S	UF(II)N 3315 S

Compatible Components

Components compatible with DIO Implant® UFII Int. Submerged system Narrow®

Browse compatible components

Description

UFII Int. Submerged system Narrow is a narrow dental implant produced by DIO Implant. It's a bone level implant. Its connection is internal, with a hexagon shape with morse taper. Its head is straight. Its head has a bevel. Its body is tapered apex with v shaped threads. Its apex has a flat shape, doesn't have a hole, and has grooves. We don't have a catalog available for this model. DIO Implant also offers 16 other implant models.
Specs:
Hex Length 03.0 03.3 8.5 UF(II)N 3008S UF(II)N 3308S 10 UF(II)N 3010S UF(II)N 3310S 1.7 11.5 UF(II)N 3011S UF(II)N 3311S 13 UF(II)N 3013S UF(II)N 3313S 15 UF(II)N 3015S UF(II)N 3315S Apex 01.6 01.9

Components compatible with DIO Implant® UFII Int. Submerged system Narrow®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
