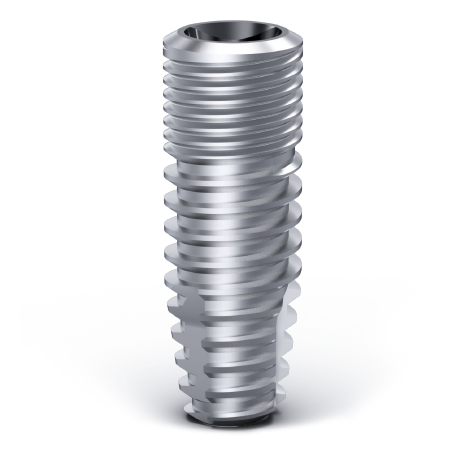

DSP Biomedical Hexagono Interno Morse main image

DSP Biomedical Hexagono Interno Morse image 1

DSP Biomedical Hexagono Interno Morse image 2

DSP Biomedical Hexagono Interno Morse image 3

DSP Biomedical Hexagono Interno Morse image 4

DSP Biomedical Hexagono Interno Morse image 5

Hexagono Interno Morse By DSP Biomedical®

Technical Features

Material: CP Titanium
Level: Bone Level
Connection Type: Internal
Connection Shape: Hexagon
Head Shape: Straight
Head Microthreads: Yes
Body Shape: Straight
Body Threads: Buttress
Apex Shape: Dome
Apex Hole: No Hole
Apex Grooves: Yes

PDF Catalog Order Compatible Components Contact us Manufacturer Page

Identify a dental implant

Learn more

Screwdrivers

Platforms

default

Dimensions

Length \ Diameter	3.50mm	3.75mm	4.00mm	4.50mm	5.00mm
7.00mm	50.3507R	50.3707R	50.4007R	50.4507R	50.5007R
8.50mm	50.3508R	50.3708R	50.4008R	50.4508R	50.5008R
10.00mm	50.3510R	50.3710R	50.4010R	50.4510R	50.5010R
11.50mm	50.3511R	50.3711R	50.4011R	50.4511R	50.5011R
13.00mm	50.3513R	50.3713R	50.4013R	50.4513R	50.5013R
15.00mm	50.3515R	50.3715R	50.4015R	50.4515R	50.5015R

Compatible Components

Components compatible with DSP Biomedical® Hexagono Interno Morse®

Browse compatible components

Description

Hexagono Interno Morse is a standard dental implant produced by DSP Biomedical. Its connection is internal, with a hexagon shape with morse taper. It's a bone level implant. Its body is straight with buttress threads. Its head is straight and has microthreads. Its head has a bevel. Its apex has a dome shape, doesn't have a hole, and has grooves. It is made of cp titanium. It is available in 5 different diameters and 6 different lengths. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. DSP Biomedical also offers 26 other implant models.
Specs:
CARACTERÍSTICAS DO IMPLANTE HEXÁGONO INTERNO MORSE 0 3.5 0 4.0 0 4.5 0 5.0 HEXÁGONO INTERNO MORSE CILÍNDRICO MICRO-ROSCA - 7.0 50.3507R 50.4007R 50.4507R 50.5007R 8.5 50.3508R 50.4008R 50.4508R 50.5008R 10 50.3510R 50.4010R 50.4510R 50.5010R 11.5 50.3511R 50.4011R 50.4511R 50.5011R 13 50.3513R 50.4013R 50.4513R 50.5013R 15 50.3515R 50.4015R 50.4515R 50.5015R MODELOS E COMPRIMENTOS ESPECIFICAÇÕES TÉCNICAS Ø 2,8 øD oA 3.5 2.4 4.0 3.0 Ø 3,3 4.5 3.4 5.0 3.9 Ø A 0D HEXAGONO INTERNO MORSE Ø 3.5 Ø 3.75 04.0 04.5 05.0 CILÍNDRICO MICRO-ROSCA MODELOSE COMPRIMENTOS 7.0 50.3507R 50.3707R 50.4007R 50.4507R 50.5007R 8.5 50.3508R 50.3708R 50.4008R 50.4508R 50.5008R 10 50.3510R 50.3710R 50.4010R 50.4510R 50.5010R 11.5 50.3511R 50.3711R 50.4011R 50.4511R 50.5011R 13 50.3513R 50.3713R 50.4013R 50.4513R 50.5013R 15 50.3515R 50.3715R 50.4015R 50.4515R 50.5015R

Components compatible with DSP Biomedical® Hexagono Interno Morse®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
