Friction Arcsys By FGM Arcsys®
Technical Features
- Level: Bone Level
- Connection Type: Internal
- Connection Shape: No Anti-rotational
- Head Shape: Straight
- Head Microthreads: No
- Body Shape: Tapered Apex
- Body Threads: V Shaped
- Apex Shape: Dome
- Apex Hole: No Hole
- Apex Grooves: Yes
Identify a dental implant
Learn moreScrewdriver
Dimensions
| Length \ Diameter | 3.30mm | 3.80mm | 4.30mm | 5.00mm | 6.00mm |
|---|---|---|---|---|---|
| 5.00mm |
✔
01.03.01 |
01.04.01 | 01.05.01 | ||
| 7.00mm | 01.02.09 | 01.03.03 | |||
| 8.00mm | 01.01.01 |
01.02.01
✔ ✔ |
01.03.04 | ||
| 9.00mm | 01.01.02 | 01.02.02 | 01.03.05 | ||
| 11.00mm | 01.01.04 | 01.02.04 | 01.03.07 | ||
| 13.00mm | 01.01.06 | 01.02.06 | 01.03.09 |
Description

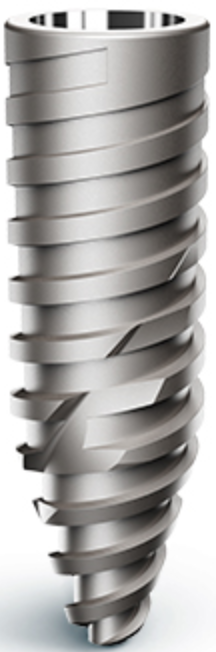

Friction Arcsys is a standard dental implant produced by FGM Arcsys. Its connection is internal, with a no anti-rotational shape with morse taper. It's a bone level implant. Its body is tapered apex with v shaped threads. Its head is straight. Its apex has a dome shape, doesn't have a hole, and has grooves. It is available in 5 different diameters and 6 different lengths. This implant model is fairly recent. It requires a screwdriver of hexagon shape. We don't have a catalog available for this model. FGM Arcsys also offers 1 other implant models.
