Surgimplant (CE) By Galimplant® Discontinued

Technical Features

Level: Bone Level
Connection Type: External
Connection Shape: Hexagon
Head Shape: Flared
Head Microthreads: Yes
Body Shape: Tapered Apex
Body Threads: V Shaped
Apex Shape: Dome
Apex Hole: No Hole
Apex Grooves: Yes

PDF Catalog Order Compatible Components Contact us Manufacturer Page

Identify a dental implant

Learn more

Connection

External Hexagon

Dimensions

Length \ Diameter	3.50mm	4.00mm	5.00mm
8.00mm	ref.ICE-3508(P:4.00mm)	REF.ICE-4008(P:4.00mm)	REF.ICE-5008(P:5.00mm)
10.00mm	ref.ICE-3510(P:4.00mm)	REF.ICE-4010(P:4.00mm)	REF.ICE-5010(P:5.00mm)
12.00mm	ref.ICE-3512(P:4.00mm)	REF.ICE-4012(P:4.00mm)	REF.ICE-5012(P:5.00mm)
14.00mm	ref.ICE-3514(P:4.00mm)	REF.ICE-4014(P:4.00mm)	REF.ICE-5014(P:5.00mm)

Compatible Components

Components compatible with Galimplant® Surgimplant (CE)®

Browse compatible components

Description

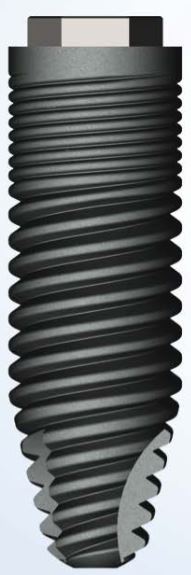

Surgimplant (CE) is a standard dental implant produced by Galimplant and has now been discontinued. It's a bone level implant. Its connection is external, with a hexagon shape with none. Its body is tapered apex with v shaped threads. Its head is flared and has microthreads. Its apex has a dome shape, doesn't have a hole, and has grooves. It is available in 3 different diameters and 4 different lengths. For more details, please refer to the catalog. Galimplant also offers 9 other implant models.

Components compatible with Galimplant® Surgimplant (CE)®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
