Surgimplant (CI) By Galimplant® Discontinued
Technical Features
- Level: Bone Level
- Connection Type: Internal
- Connection Shape: Hexagon
- Head Shape: Straight
- Head Microthreads: Yes
- Body Shape: Tapered Apex
- Body Threads: V Shaped
- Apex Shape: Dome
- Apex Hole: No Hole
- Apex Grooves: Yes
Identify a dental implant
Learn moreConnection
Internal
Hexagon with morse taper
Dimensions
| Length \ Diameter | 3.20mm | 3.50mm | 4.00mm | 5.00mm |
|---|---|---|---|---|
| 8.00mm | ICI-03508(P:3.50mm) | ICI-04008(P:4.00mm) | ICI-05008(P:5.00mm) | |
| 10.00mm | ICI-03210(P:3.20mm) | ICI-03510(P:3.50mm) | ICI-04010(P:4.00mm) | ICI-05010(P:5.00mm) |
| 12.00mm | ICI-03212(P:3.20mm) | ICI-03512(P:3.50mm) | ICI-04012(P:4.00mm) | ICI-05012(P:5.00mm) |
| 14.00mm | ICI-03214(P:3.20mm) | ICI-03514(P:3.50mm) | ICI-04014(P:4.00mm) | ICI-05014(P:5.00mm) |
Compatible Components
Components compatible with Galimplant® Surgimplant (CI)®
Description

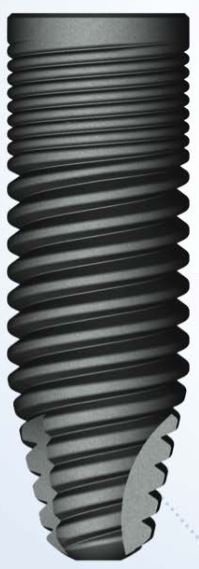

Surgimplant (CI) is a standard dental implant produced by Galimplant and has now been discontinued. It's a bone level implant. Its connection is internal, with a hexagon shape with morse taper. Its head is straight and has microthreads. Its body is tapered apex with v shaped threads. Its apex has a dome shape, doesn't have a hole, and has grooves. It is available in 4 different diameters and 4 different lengths. For more details, please refer to the catalog. Galimplant also offers 9 other implant models.
Specs:
Conexión interna (CI) 10,0 mm Ref. ICI-03210 12,0 mm Ref. ICI-03212 14,0 mm Ref. ICI-03214 8,0 mm Ref. ICI-03508 10,0 mm Ref. ICI-O3510 PLATAFORMA Ø3,2 mm 8,0 mm Ref. ICI-04008 12,0 mm Ref. ICI-03512 6 Ø3,2 mm Ref. ICI-03514 10,0 mm Ref. ICI-O4010 14,0 mm 12,0 mm Ref. ICI-04012 8,0 mm Ref. ICI-05008 PLATAFORMA ø3,5 mm 14,0 mm Ref. ICI-04014 10,0 mm Ref. ICI-05010 6 Ø3,5 mm PLATAFORMA Ø4,0 mm 12,0 mm Ref. ICI-05012 Ø4,0 mm 14,0 mm Ref. ICI-05014 PLATAFORMA ø5,0 mm 6 Ø5,0 mm
Components compatible with Galimplant® Surgimplant (CI)®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers.
Available for different platforms.
