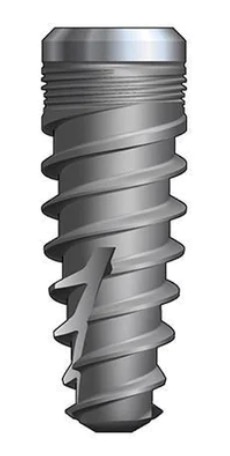

Glidewell Hahn Tapered Implants main image

Hahn Tapered Implants By Glidewell®

Technical Features

Level: Bone Level
Connection Type: Internal
Connection Shape: Hexagon
Head Shape: Straight
Head Microthreads: Yes
Body Shape: Tapered
Body Threads: V Shaped
Apex Shape: Flat
Apex Hole: No Hole
Apex Grooves: Yes

PDF Catalog Order Compatible Components Contact us

Identify a dental implant

Learn more

Connection

Internal Hexagon with morse taper

Dimensions

Length \ Diameter	3.00mm	3.50mm	4.30mm	5.00mm	7.00mm
8.00mm		70-1154-IMP0004(P:3.50mm)	70-1154-IMP0009(P:3.50mm)	70-1154-IMP0014(P:3.90mm)	70-1154-IMP0019(P:5.10mm)
10.00mm		70-1154-IMP0005(P:3.50mm)	70-1154-IMP0010(P:3.50mm)	70-1154-IMP0015(P:3.90mm)	70-1154-IMP0020(P:5.10mm)
11.50mm	70-1154-IMP0001(P:3.00mm)	70-1154-IMP0006(P:3.50mm)	70-1154-IMP0011(P:3.50mm)	70-1154-IMP0016(P:3.90mm)	70-1154-IMP0021(P:5.10mm)
13.00mm	70-1154-IMP0002(P:3.00mm)	70-1154-IMP0007(P:3.50mm)	70-1154-IMP0012(P:3.50mm)	70-1154-IMP0017(P:3.90mm)
16.00mm	70-1154-IMP0003(P:3.00mm)	70-1154-IMP0008(P:3.50mm)	70-1154-IMP0013(P:3.50mm)	70-1154-IMP0018(P:3.90mm)

Compatible Components

Components compatible with Glidewell® Hahn Tapered Implants®

Browse compatible components

Description

Hahn Tapered Implants is a standard dental implant produced by Glidewell. Its connection is internal, with a hexagon shape with morse taper. It's a bone level implant. Its body is tapered with v shaped threads. Its head is straight and has microthreads. Its head has a bevel. Its apex has a flat shape, doesn't have a hole, and has grooves. It is available in 5 different diameters and 5 different lengths. This implant model is fairly recent. For more details, please refer to the catalog. Glidewell also offers 3 other implant models.

Components compatible with Glidewell® Hahn Tapered Implants®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
