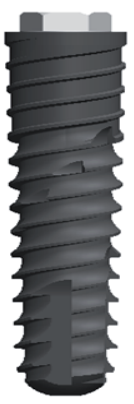

HXE By GT medical®

Technical Features

Level: Bone Level
Connection Type: External
Connection Shape: Hexagon
Head Shape: Straight
Head Microthreads: No
Body Shape: Tapered
Body Threads: Reverse Buttress
Apex Shape: Dome
Apex Hole: No Hole
Apex Grooves: Yes

Order Compatible Components Contact us Manufacturer Page

Identify a dental implant

Learn more

Connection

External Hexagon

Dimensions

Length \ Diameter	3.50mm	4.10mm	5.10mm
8.00mm	D01350	D01410	D01510
10.00mm	D01351	D01411	D01511
12.00mm	D01352	D01412	D01512
14.00mm	D01353	D01413	D01513

Compatible Components

Components compatible with GT medical® HXE®

Browse compatible components

Description

HXE is a standard dental implant produced by GT medical. Its connection is external, with a hexagon shape with none. It's a bone level implant. Its head is straight. Its body is tapered with reverse buttress threads. Its apex has a dome shape, doesn't have a hole, and has grooves. It is available in 3 different diameters and 4 different lengths. We don't have a catalog available for this model. GT medical also offers 8 other implant models.

Components compatible with GT medical® HXE®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
