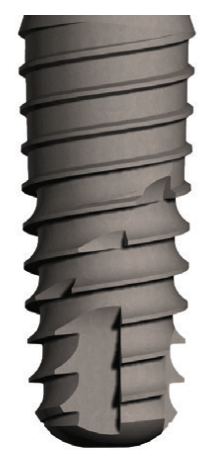

HXI Tapered II By GT medical®

Technical Features

Level: Bone Level
Connection Type: Internal
Connection Shape: Hexagon
Head Shape: Straight
Head Microthreads: No
Body Shape: Tapered
Body Threads: Reverse Buttress
Apex Shape: Dome
Apex Hole: No Hole
Apex Grooves: Yes

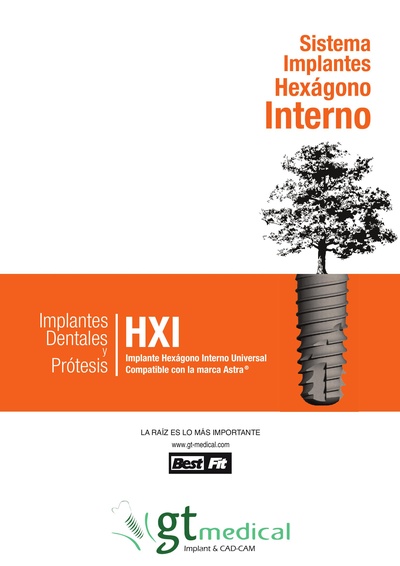

PDF Catalog Order Compatible Components Contact us

Identify a dental implant

Learn more

Connection

Internal Hexagon

Dimensions

Length \ Diameter	3.70mm	4.10mm	4.30mm	4.80mm
8.00mm	D11375	D11415	D11435	D11485
10.00mm	D11376	D11416	D11436	D11486
12.00mm	D11377	D11417	D11437	D11487
14.00mm	D11378	D11418	D11438	D11488

Compatible Components

Components compatible with GT medical® HXI Tapered II®

Browse compatible components

Description

HXI Tapered II is a standard dental implant produced by GT medical. Its connection is internal, with a hexagon shape with morse taper. It's a bone level implant. Its body is tapered with reverse buttress threads. Its head is straight. Its apex has a dome shape, doesn't have a hole, and has grooves. It is available in 4 different diameters and 4 different lengths. For more details, please refer to the catalog. GT medical also offers 8 other implant models.

Components compatible with GT medical® HXI Tapered II®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
