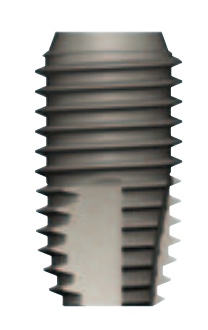

HG II Ultra-Wide By Hiossen®
Technical Features
- Level: Bone Level
- Connection Type: Internal
- Connection Shape: Hexagon
- Head Shape: Straight
- Head Microthreads: No
- Body Shape: Tapered Apex
- Body Threads: V Shaped
- Apex Shape: Flat
- Apex Hole: No Hole
- Apex Grooves: Yes
Identify a dental implant
Learn moreDimensions
| Length \ Diameter | 6.00mm | 7.00mm |
|---|---|---|
| 7.00mm | 6007R | 7007R |
| 8.50mm | 6008R | 7008R |
| 10.00mm | 6010R | 7010R |
| 11.50mm | 6011R | 7011R |
| 13.00mm | 6013R | 7013R |
Description
HG II Ultra-Wide is a standard dental implant produced by Hiossen. It's a bone level implant. Its connection is internal, with a hexagon shape with morse taper. Its body is tapered apex with v shaped threads. Its head is straight. Its head has a bevel. Its apex has a flat shape, doesn't have a hole, and has grooves. For more details, please refer to the catalog. Hiossen also offers 21 other implant models.
Specs:
HG II Ultra-Wide Fixture HG II Ultra-Wide standard connection Body dia. : 0 6.0mm D L 6.0 7.0 6007R 8.5 6008R Hex2.5 10 6010R 11.5 6011R 13 6013R Order Code Pre-Mounted fixture package : AHG2S + item code NoMount fixture package : CHG2S + item code ex) AHG2S + 6008R = AHG2S6008R Body dia. : a 7.0mm D L 07.0 7.0 7007R 8.5 7008R -Hex2.5 10 7010R 11.5 7011R 13 7013R HG II Ultra-Wide Fixture HG II Ultra-Wide standard connection Body dia. : 0 6.0mm D L 6.0 7.0 6007R 8.5 6008R Hex2.5 10 6010R 11.5 6011R 13 6013R Order Code Pre-Mounted fixture package : AHG2S + item code NoMount fixture package : CHG2S + item code ex) AHG2S + 6008R = AHG2S6008R Body dia. : a 7.0mm D L 07.0 7.0 7007R 8.5 7008R -Hex2.5 10 7010R 11.5 7011R 13 7013R
