HG III By Hiossen®

Technical Features

Level: Bone Level
Connection Type: Internal
Connection Shape: Hexagon
Head Shape: Straight
Head Microthreads: Yes
Body Shape: Tapered
Body Threads: V Shaped
Apex Shape: Dome
Apex Hole: No Hole
Apex Grooves: Yes

PDF Catalog

Identify a dental implant

Learn more

Dimensions

Length \ Diameter	3.50mm	4.00mm	4.50mm	5.00mm
7.00mm		4007R	4507R	5007R
8.50mm	3508R	4008R	4508R	5008R
10.00mm	3510R	4010R	4510R	5010R
11.50mm	3511R	4011R	4511R	5011R
13.00mm	3513R	4013R	4513R	5013R
15.00mm	3515R	4015R	4515R	5015R

Description

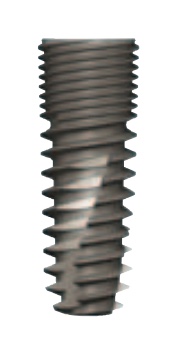

HG III is a standard dental implant produced by Hiossen. It's a bone level implant. Its connection is internal, with a hexagon shape with morse taper. Its head is straight and has microthreads. Its body is tapered with v shaped threads. Its apex has a dome shape, doesn't have a hole, and has grooves. It is available in 4 different diameters and 6 different lengths. For more details, please refer to the catalog. Hiossen also offers 21 other implant models.
Specs:
HG III Fixture HG III fixture - mini connection Body dia. : 0 3.5mm D L 3.5 Body dia. : Ø 4.5mm D 04.5 7.0 - 7.0 4507R Hex 2.5 8.5 3508R Hex 2.1 t 8.5 4508R 10 3510R 10 4510R 11.5 3511R 11.5 4511R 13 3513R 13 4513R 15 3515R 15 4515R . Order Code Pre-Mounted fixture package AHG3M item code 8.5 10 11.5 13 15 NoMount fixture package CHG3M item code 7 ex) AHG3M + 3508R AHG3M3508R 8.5 10 11.5 13 15 HG III fixture - standard connection Body dia. Ø 4.0mm D 4.0 Body dia. a 5.0mm D @.0 7.0 4007R Hex 2.5 7.0 5007R Hex 2.5 1 8.5 4008R 8.5 5008R 10 4010R 10 5010R 11.5 4011R 11.5 5011R 13 4013R 13 5013R 15 4015R 15 5015R Order Code Pre-Mounted fixture package AHG3S item code NoMount fixture package CHG3S item code 7 8.5 10 11.5 13 15 ex) AHG3S + 4007R AHG3S4007R 7 8.5 10 11.5 13 15
