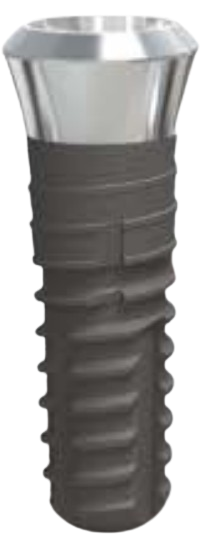

Tissue Level By Implance®
Technical Features
- Level: Tissue Level
- Connection Type: Internal
- Head Shape: Flared
- Head Microthreads: No
- Body Shape: Tapered
- Body Threads: Reverse Buttress
- Apex Shape: Dome
- Apex Hole: No Hole
- Apex Grooves: Yes
Identify a dental implant
Learn moreScrewdriver
Dimensions
| Length \ Diameter | 3.70mm | 4.30mm | 4.80mm | 5.50mm |
|---|---|---|---|---|
| 8.00mm | TFHR3708 | TFHR4308 | TFHR4808 | TWFHR5508 |
| 10.00mm | TFHR3710 | TFHR4310 | TFHR4810 | TWFHR5510 |
| 12.00mm | TFHR3712 | TFHR4312 | TFHR4812 | TWFHR5512 |
| 14.00mm | TFHR3714 | TFHR4314 | TFHR4814 |
Compatible Components
Components compatible with Implance® Tissue Level®
Description
Tissue Level is a standard dental implant produced by Implance. Its connection is internal with morse taper. It's a tissue level implant. Its head is flared. Its head has a bevel. Its body is tapered with reverse buttress threads. Its apex has a dome shape, doesn't have a hole, and has grooves. It is available in 4 different diameters and 4 different lengths. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. Implance also offers 8 other implant models.
Components compatible with Implance® Tissue Level®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers.
Available for different platforms.

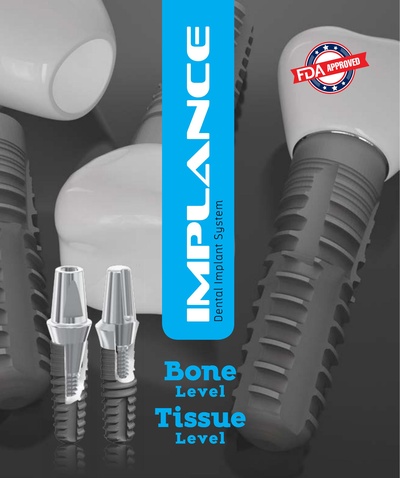

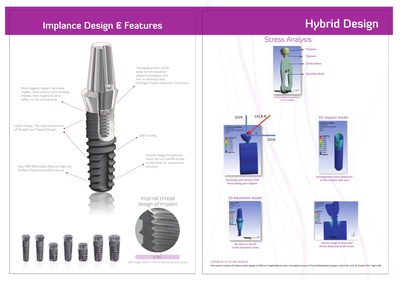

Catalogs
