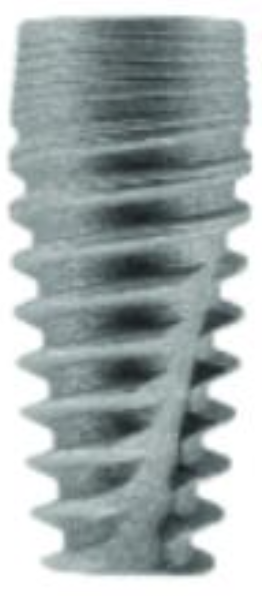

Logic Plus By Implant Depot®

Technical Features

Level: Bone Level
Connection Type: Internal
Connection Shape: Hexagon
Head Shape: Straight
Head Microthreads: Yes
Body Shape: Tapered
Body Threads: V Shaped
Apex Shape: Flat
Apex Hole: No Hole
Apex Grooves: Yes

PDF Catalog Order Compatible Components Contact us Manufacturer Page

Identify a dental implant

Learn more

Screwdriver

Dimensions

Length \ Diameter	3.50mm	4.30mm	5.00mm	6.00mm
6.00mm		LGI PLUS 4.3-6	LGI PLUS 5.0-6	LGI PLUS 6.0-6
8.00mm	LGI PLUS 3.5-8	LGI PLUS 4.3-8	LGI PLUS 5.0-8	LGI PLUS 6.0-8
10.00mm	LGI PLUS 3.5-10	LGI PLUS 4.3-10	LGI PLUS 5.0-10	LGI PLUS 6.0-10
11.50mm	LGI PLUS 3.5-11.5	LGI PLUS 4.3-11.5	LGI PLUS 5.0-11.5	LGI PLUS 6.0-11.5
13.00mm	LGI PLUS 3.5-13	LGI PLUS 4.3-13	LGI PLUS 5.0-13
16.00mm	LGI PLUS 3.5-16	LGI PLUS 4.3-16	LGI PLUS 5.0-16

Compatible Components

Components compatible with Implant Depot® Logic Plus®

Browse compatible components

Description

Logic Plus is a standard dental implant produced by Implant Depot. It's a bone level implant. Its connection is internal, with a hexagon shape with none. Its body is tapered with v shaped threads. Its head is straight and has microthreads. Its head has a bevel. Its apex has a flat shape, doesn't have a hole, and has grooves. It is available in 4 different diameters and 6 different lengths. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. Implant Depot also offers 4 other implant models.

Components compatible with Implant Depot® Logic Plus®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
