GoDirect By Implant Direct®

Technical Features

Level: Tissue Level
Connection Type: Internal
Connection Shape: Custom
Head Shape: Wide
Head Microthreads: Yes
Body Shape: Tapered
Body Threads: V Shaped
Apex Shape: Dome
Apex Hole: No Hole
Apex Grooves: Yes

PDF Catalog Manufacturer Page

Identify a dental implant

Learn more

Dimensions

Length \ Diameter	3.00mm	3.70mm
10.00mm	433010(P:3.00mm) ✔ 423010(P:1.50mm)	✔
11.00mm		433711
11.50mm	423011(P:1.50mm) 433011(P:3.00mm) ✔	✔
13.00mm	423013 433013 433013(P:3.00mm) 423013(P:1.50mm)	423713

Description

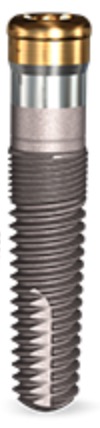

GoDirect is a standard dental implant produced by Implant Direct. Its connection is internal, with a custom shape with none. It's a tissue level implant. Its body is tapered with v shaped threads. Its head is wide and has microthreads. Its apex has a dome shape, doesn't have a hole, and has grooves. This implant model is fairly recent. For more details, please refer to the catalog. Implant Direct also offers 25 other implant models.
Specs:
3.0mmD GoDirect In dense bone, use CBD3.2 as final drill Code Diameter Length Shoulder Height 423010 3.0mmD 10mmL 1.5mmL 423011 3.0mmD 11.5mmL 1.5mmL 423013 3.0mmD 13mmL 1.5mmL 433010 3.0mmD 10mmL 3.0mmL 433011 3.0mmD 11.5mmL 3.0mmL 433013 3.0mmD 13mmL 3.0mmL 3.7mmD GoDirect In dense bone, use CBD37 as final drill Code Diameter Length Shoulder Height 423710 3.7mmD 10mmL 1.5mmL 423711 3.7mmD 11.5mmL 1.5mmL 423713 3.7mmD 13mmL 1.5mml 433710 3.7mmD 10mmL 3.0mml 433711 3.7mmD 11.5mmL 3.0mmL 433713 3.7mmD 13mmL 3.0mmL 4.7mmD GoDirect In dense bone, use CBD4.7 as final drill Code Diameter Length Shoulder Height 424708 4.7mmD 8mmL 1.5mmL 424710 4.7mmD 10mmL 1.5mmL 424713 4.7mmD 13mmL 1.5mmL 3.0mmD GoDirect In dense bone, use CBD3.2 as final drill Code Diameter Length Shoulder Height 423010 3.0mmD 10mmL 1.5mmL 423011 3.0mmD 11.5mmL 1.5mmL 423013 3.0mmD 13mmL 1.5mmL 433010 3.0mmD 10mmL 3.0mmL 433011 3.0mmD 11.5mmL 3.0mmL 433013 3.0mmD 13mmL 3.0mmL 3.7mmD GoDirect In dense bone, use CBD37 as fi…
