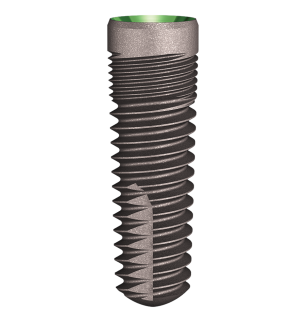

Legacy 1 By Implant Direct®

Technical Features

Level: Bone Level
Connection Type: Internal
Connection Shape: Hexagon
Head Shape: Straight
Head Microthreads: Yes
Body Shape: Tapered
Body Threads: V Shaped
Apex Shape: Dome
Apex Hole: No Hole
Apex Grooves: Yes

PDF Catalog Order Compatible Components Contact us

Identify a dental implant

Learn more

Connection

Internal Hexagon

Screwdriver

Platforms

3.5mm
4.5mm
5.7mm

Platform specifications and compatibilities

Dimensions

Length \ Diameter	3.70mm	4.70mm	5.70mm
8.00mm	803708(P:3.50mm)	804708(P:4.50mm)	805708(P:5.70mm)
10.00mm	803710(P:3.50mm)	804710(P:4.50mm)	805710(P:5.70mm)
11.50mm	803711(P:3.50mm)	804711(P:4.50mm)	805711(P:5.70mm)
13.00mm	803713(P:3.50mm)	804713(P:4.50mm)	805713(P:5.70mm)
16.00mm	803716(P:3.50mm)	804716(P:4.50mm)	805716(P:5.70mm)

Compatible Components

Components compatible with Implant Direct® Legacy 1®

Browse compatible components

Description

Legacy 1 is a standard dental implant produced by Implant Direct. Its connection is internal, with a hexagon shape with internal bevel. It's a bone level implant. Its body is tapered with v shaped threads. Its head is straight and has microthreads. Its head has a bevel. Its apex has a dome shape, doesn't have a hole, and has grooves. It is available in 3 different diameters and 5 different lengths.It is available in 3 different platforms. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. Implant Direct also offers 25 other implant models.
Specs:
SBM Surface Implants Includes Cover Screw, Extender and Carrier/Transfer 3.7mmD Code Diameter Length Platform 803708 3.7mmD 8mmL 3.5mmD 803710 3.7mmD 10mmL 3.5mmD 803711 3.7mmD 11.5mmL 3.5mmD 803713 3.7mmD 13mmL 3.5mmD 803716 3.7mmD 16mmL 3.5mmD 4.7mmD Code Diameter Length Platform 804708 4.7mmD 8mmL 4.5mmD 804710 4.7mmD 10mmL 4.5mmD 804711 4.7mmD 11.5mmL 4.5mmD 804713 4.7mmD 13mmL 4.5mmD 804716 4.7mmD 16mmL 4.5mmD 5.7mmD Code Diameter Length Platform 805708 5.7mmD 8mmL 5.7mmD 805710 5.7mmD 10mmL 5.7mmD 805711 5.7mmD 11.5mmL 5.7mmD 805713 5.7mmD 13mmL 5.7mmD 805716 5.7mmD 16mmL 5.7mmD

Components compatible with Implant Direct® Legacy 1®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
