Implant-One (microthreads) By Implant Logistics®
Technical Features
Identify a dental implant
Learn moreScrewdriver
Dimensions
| Length \ Diameter | 3.50mm | 4.00mm | 4.50mm | 5.00mm | 5.50mm |
|---|---|---|---|---|---|
| 8.00mm | IR3-3508-00 | IR4-4008-00 | IR4-4508-00 | IR5-5008-00 | IR5-5508-00 |
| 10.00mm | IR3-3510-00 | IR4-4010-00 | IR4-4510-00 | IR5-5010-00 | IR5-5510-00 |
| 12.00mm | IR3-3512-00 | IR4-4012-00 | IR4-4512-00 | IR5-5012-00 | IR5-5512-00 |
| 14.00mm | IR3-3514-00 | IR4-4014-00 | IR4-4514-00 | IR5-5014-00 | IR5-5514-00 |
Compatible Components
Components compatible with Implant Logistics® Implant-One (microthreads)®
Description

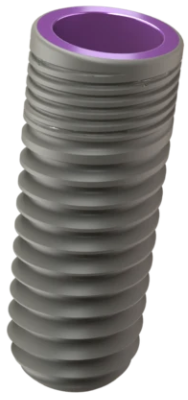

Implant-One (microthreads) is a standard dental implant produced by Implant Logistics. It's a bone level implant. Its connection is internal, with a hexagon shape with morse taper. Its head is straight and has microthreads. Its body is straight with v shaped threads. Its apex has a dome shape, doesn't have a hole, and doesn't have grooves. It is available in 5 different diameters and 4 different lengths. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. Implant Logistics also offers 2 other implant models.
Specs:
STANDARD IMPLANTS: 300 series Diameter Length LENGTH 3.5 mm 8 mm IR3-3508-00 10 mm IR3-3510-00 12 mm IR3-3512-00 14 mm IR3-3514-00
Components compatible with Implant Logistics® Implant-One (microthreads)®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers.
Available for different platforms.
