IA Serie 5 By Implant VEL®
Technical Features
- Level: Bone Level
- Connection Type: Internal
- Connection Shape: Hexagon
- Head Shape: Flared
- Head Microthreads: Yes
- Body Shape: Tapered
- Body Threads: Reverse Buttress
- Apex Shape: Cone
- Apex Hole: No Hole
- Apex Grooves: Yes
Identify a dental implant
Learn moreScrewdriver
Dimensions
| Length \ Diameter | 5.00mm |
|---|---|
| 8.00mm | IA508 |
| 10.00mm | IA510 |
| 11.50mm | IA511.5 |
| 13.00mm | IA513 |
| 16.00mm | IA516 |
Description

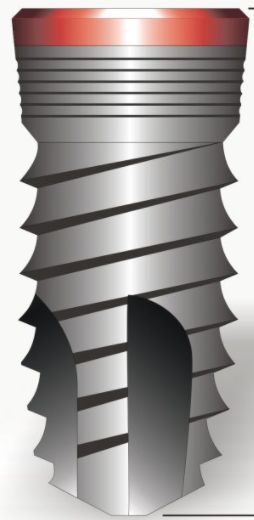

IA Serie 5 is a standard dental implant produced by Implant VEL. It's a bone level implant. Its connection is internal, with a hexagon shape with none. Its body is tapered with reverse buttress threads. Its head is flared and has microthreads. Its head has a bevel. Its apex has a cone shape, doesn't have a hole, and has grooves. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. Implant VEL also offers 15 other implant models.
Catalogs
