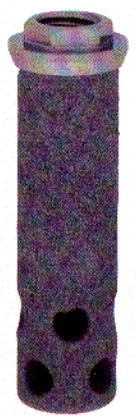

IMTEC Universal Flare Press Fit Cylinder main image

IMTEC Universal Flare Press Fit Cylinder image 1

Universal Flare Press Fit Cylinder main image

Universal Flare Press Fit Cylinder By IMTEC®

Technical Features

Level: Bone Level
Connection Type: External
Connection Shape: Hexagon
Head Shape: Flared
Head Microthreads: No
Body Shape: Straight
Body Threads: No Threads
Apex Shape: Dome
Apex Hole: Round
Apex Grooves: No

PDF Catalog Order Compatible Components Contact us

Identify a dental implant

Learn more

Connection

External Hexagon

Screwdriver

Dimensions

Length \ Diameter	3.40mm
8.00mm	3408HA(P:4.00mm) 3408(P:4.00mm)
10.00mm	3410(P:4.00mm) 3410HA(P:4.00mm)
13.00mm	3413(P:4.00mm) 3413HA(P:4.00mm)
15.00mm	3415HA(P:4.00mm) 3415(P:4.00mm)

Compatible Components

Components compatible with IMTEC® Universal Flare Press Fit Cylinder®

Browse compatible components

Description

Universal Flare Press Fit Cylinder is a standard dental implant produced by IMTEC. It's a bone level implant. Its connection is external, with a hexagon shape with none. Its body is straight and doesn't have threads. Its head is flared. Its apex has a dome shape,has a hole of round shape, and doesn't have grooves. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. IMTEC also offers 20 other implant models.
Specs:
3.4 mm Universal Flare Press Fit Cylinder, 4.0 mm Head Diameter The 3.4 mm Flare has a 3.4 mm O.D. body which expands to a 4.0 mm Universal head and hex. Prosthetically universal compatible. See flow chart page 59. Included Recommended where bone width is compromised through the implant body area. Sterile Use #1734T, 3.4 mm drill for final preparation. Use Counterbore Drill #2040 to attain 4.0 mm opening at the crest when indicated. 1734T Titanium Plasma Sprayed (T.P.S.) Drill Marking Tri-Spade Drill Size 8 mm 10 mm 13 mm 15 mm 16 Catalog No. 3408 3410 3413 3415 14 Price: $99.00 11 - 9 TD Combination Hydroxylapatite (H.A.) & Titanium Plasma Sprayed (T.P.S.) O Size 8 mm 10 mm 13 mm 15 mm 8 mm 10 mm 13 mm 15 mm Catalog No. 3408HA 3410HA 3413HA 3415HA 3.4 mm Implant Lengths Price: $99.00

Components compatible with IMTEC® Universal Flare Press Fit Cylinder®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
