Capsa NO By INP Biomedical®

Technical Features

Level: Bone Level
Connection Type: Internal
Connection Shape: Hexagon
Head Shape: Flared
Head Microthreads: Yes
Body Shape: Straight
Body Threads: Buttress
Apex Shape: Dome
Apex Hole: No Hole
Apex Grooves: Yes

PDF Catalog Order Compatible Components Contact us

Identify a dental implant

Learn more

Screwdrivers

Dimensions

Length \ Diameter	4.00mm	5.00mm
9.00mm	✔(P:3.70mm)	✔(P:3.70mm)
12.00mm	✔(P:3.70mm)	✔(P:3.70mm)
15.00mm	✔(P:3.70mm)	✔(P:3.70mm)
18.00mm	✔(P:3.70mm)

Compatible Components

Components compatible with INP Biomedical® Capsa NO®

Browse compatible components

Description

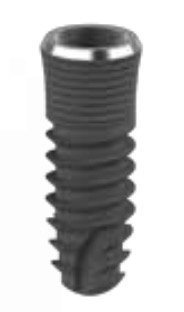

Capsa NO is a standard dental implant produced by INP Biomedical. It's a bone level implant. Its connection is internal, with a hexagon shape with morse taper. Its head is flared and has microthreads. Its head has a bevel. Its body is straight with buttress threads. Its apex has a dome shape, doesn't have a hole, and has grooves. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. INP Biomedical also offers 15 other implant models.
Specs:
Capsa NO Plataforma 3.7mm NO 4,0 5,0 Comprimentos Comprimentos 9, 12,15,18mm 9, 12, 15mm

Components compatible with INP Biomedical® Capsa NO®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
