JDEvolution S By JDentalCare®

Technical Features

Material: CP Titanium
Level: Bone Level
Connection Type: Internal
Connection Shape: Hexagon
Head Shape: Straight
Head Microthreads: No
Body Shape: Tapered
Body Threads: V Shaped
Apex Shape: Flat
Apex Hole: No Hole
Apex Grooves: Yes

PDF Catalog Order Compatible Components Contact us

Identify a dental implant

Learn more

Screwdriver

Platforms

default

Dimensions

Length \ Diameter	3.20mm
8.00mm	EV32080(P:3.20mm)
10.00mm	EV32100(P:3.20mm)
11.50mm	EV32115(P:3.20mm)
13.00mm	EV32130(P:3.20mm)
15.00mm	EV32150(P:3.20mm)

Compatible Components

Components compatible with JDentalCare® JDEvolution S®

Browse compatible components

Description

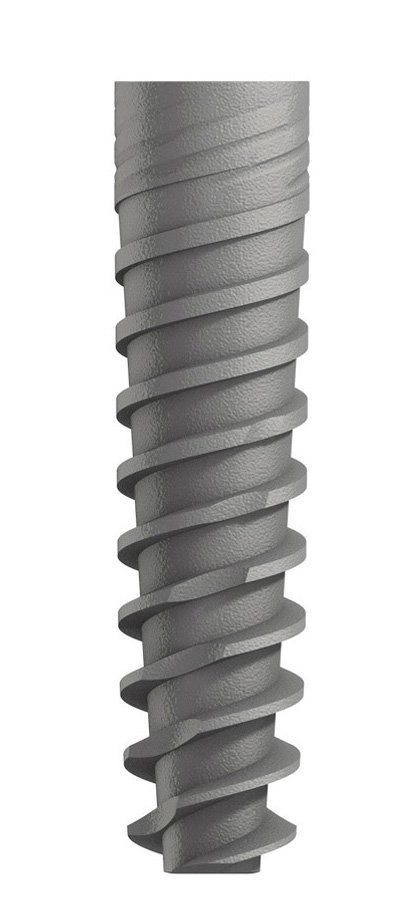

JDEvolution S is a standard dental implant produced by JDentalCare. Its connection is internal, with a hexagon shape with internal bevel. It's a bone level implant. Its body is tapered with v shaped threads. Its head is straight. Its apex has a flat shape, doesn't have a hole, and has grooves. It is made of cp titanium. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. JDentalCare also offers 14 other implant models.
Specs:
JDEVOLUTIONSS R IMPLANT MEASURES AND LENGTHS Ø 3,2 Ø 3,2 0 2, 7 0 3,0 The JDEvolution R S dental implant is available in the lengths shown in the following chart: 03.2 mm 8 mm 10 mm 11,5 mm 13 mm 15 mm

Components compatible with JDentalCare® JDEvolution S®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
