J2I By KJ Meditech®

Technical Features

Level: Tissue Level
Connection Type: Internal
Connection Shape: Octagon
Head Shape: Flared
Head Microthreads: No
Body Shape: Tapered
Body Threads: Reverse Buttress
Apex Shape: Dome
Apex Hole: No Hole
Apex Grooves: No

PDF Catalog Order Compatible Components Contact us Manufacturer Page

Identify a dental implant

Learn more

Screwdriver

Platforms

4.8mm
6mm

Dimensions

Length \ Diameter	4.10mm	4.30mm	4.80mm
8.00mm	JIF484108P JIF484108H	JIF484308H JIF484308P	JIF484808P JIF654808P JIF484808H JIF654808H
10.00mm	JIF48411H JIF484110P	JIF484310P JIF484310H	JIF484810H JIF654810H JIF654810P JIF484810P
12.00mm	JIF484112H JIF484112P	JIF484312H JIF484312P	JIF654812P JIF654812H JIF484812P JIF484812H
14.00mm	JIF484114H JIF484114P	JIF484314P JIF484314H	JIF484814H JIF654814P JIF654814H JIF484814P

Compatible Components

Components compatible with KJ Meditech® J2I®

Browse compatible components

Description

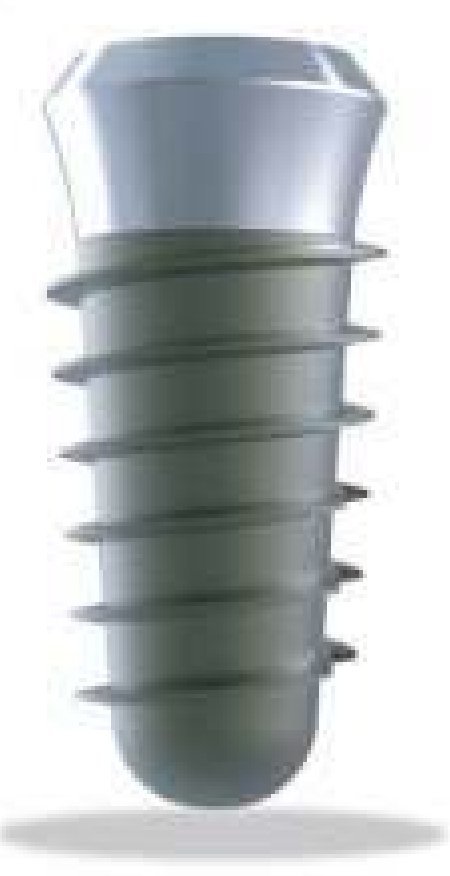

J2I is a standard dental implant produced by KJ Meditech. Its connection is internal, with a octagon shape with morse taper. It's a tissue level implant. Its body is tapered with reverse buttress threads. Its head is flared. Its head has a bevel. Its apex has a dome shape, doesn't have a hole, and doesn't have grooves. It is available in 3 different diameters and 4 different lengths. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. KJ Meditech also offers 15 other implant models.
Specs:
Fixture Submerged type implant with an Internal Octa & 8' morse taper connection structure Limited insertion torque : 40Ncm OCTA 6.5 Wide Platform Surface Treatment Diameter Length REF SLA HA 8mm JIF654808P Platform Diameter JIF654808H 10mm JIF654810P JIF654810H Ø4.8 Length 12mm JIF654812P JIF654812H 14mm JIF654814P JIF654814H Diameter 4.8) Regular Platform Diameter Length REF Diameter Length REF Diameter Length REF JIF484308P 8mm JIF484108P 8mm 8mm JIF484808P JIF484108H JIF484308H JIF484808H 10mm JIF484110P 10mm JIF484310P 10mm JIF484810P JIF484110H JIF484310H JIF484810H Ø4.1 Ø4.3 Ø4.8 JIF484112P 12mm JIF484312P 12mm 12mm JIF484812P JIF484112H JIF484312H JIF484812H 14mm JIF484114P 14mm JIF484314P JIF484114H JIF484314H 14mm JIF484814P JIF484814H

Components compatible with KJ Meditech® J2I®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
