Three Lobes By MaCo International®
Technical Features
- Level: Bone Level
- Connection Type: Internal
- Connection Shape: Tri lobe
- Head Shape: Wide
- Head Microthreads: Yes
- Body Shape: Tapered Apex
- Body Threads: Buttress
- Apex Shape: Dome
- Apex Hole: No Hole
- Apex Grooves: No
Identify a dental implant
Learn moreDimensions
| Length \ Diameter | 3.50mm | 4.30mm | 5.00mm | 6.00mm |
|---|---|---|---|---|
| 8.00mm | ICT001(P:3.50mm) | ICT005(P:4.30mm) | ICT009(P:5.00mm) | ICT013(P:6.00mm) |
| 10.00mm | ICT002(P:3.50mm) | ICT006(P:4.30mm) | ICT010(P:5.00mm) | ICT014(P:6.00mm) |
| 13.00mm | ICT003(P:3.50mm) | ICT007(P:4.30mm) | ICT011(P:5.00mm) | ICT015(P:6.00mm) |
| 16.00mm | ICT004(P:3.50mm) | ICT008(P:4.30mm) | ICT012(P:5.00mm) | ICT016(P:6.00mm) |
Description

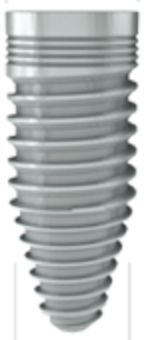

Three Lobes is a standard dental implant produced by MaCo International. It's a bone level implant. Its connection is internal, with a tri lobe shape with none. Its body is tapered apex with buttress threads. Its head is wide and has microthreads. Its apex has a dome shape, doesn't have a hole, and doesn't have grooves. It is available in 4 different diameters and 4 different lengths. We don't have a catalog available for this model. MaCo International also offers 9 other implant models.
Specs:
o 3,50 O 4,30 O 5,00 o 6,00 P 3,50 P 4,30 P 5,00 P 6,00 ICT001 ICT005 ICT009 ICT013 L 8 mm 8 mm 8 mm 8 mm ICT002 ICT006 ICT010 ICT014 L 10 mm L 10 mm L 10 mm 10 mm ICT003 ICT007 ICT011 ICT015 L 13 mm L 13 mm L 13 mm 13 mm ICT004 ICT008 ICT012 ICT016 L 16 mm L 16 mm L 16 mm 16 mm
