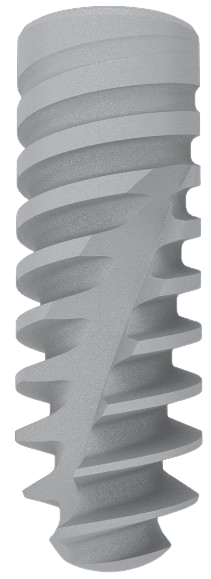

ICX Active Master By Medentis Medical®

Technical Features

Level: Bone Level
Connection Type: Internal
Connection Shape: Hexagon
Head Shape: Straight
Head Microthreads: No
Body Shape: Tapered
Body Threads: V Shaped
Apex Shape: Dome
Apex Hole: No Hole
Apex Grooves: Yes

PDF Catalog Order Compatible Components Contact us

Identify a dental implant

Learn more

Connection

Hexagon

Screwdrivers

Dimensions

Length \ Diameter	3.75mm	4.10mm	4.80mm
8.00mm	ACM-001-390080	ACM-001-425080	ACM-001-480080
10.00mm	ACM-001-390100	ACM-001-425100	ACM-001-480100
12.50mm	ACM-001-390125	ACM-001-425125	ACM-001-480125
15.00mm	ACM-001-390150	ACM-001-425150	ACM-001-480150

Compatible Components

Components compatible with Medentis Medical® ICX Active Master®

Browse compatible components

Description

ICX Active Master is a standard dental implant produced by Medentis Medical. Its connection is internal, with a hexagon shape with morse taper. It's a bone level implant. Its head is straight. Its body is tapered with v shaped threads. Its apex has a dome shape, doesn't have a hole, and has grooves. It is available in 3 different diameters and 4 different lengths. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. Medentis Medical also offers 8 other implant models.

Components compatible with Medentis Medical® ICX Active Master®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
