BoneTrust plus cone By Medical Instinct®
Technical Features
Identify a dental implant
Learn moreScrewdriver
Dimensions
| Length \ Diameter | 3.00mm | 3.40mm | 4.00mm | 5.00mm |
|---|---|---|---|---|
| 6.50mm | 210-034065 | 210-040065 | 210-050065 | |
| 8.00mm | 210-034080 | 210-040080 | 210-050080 | |
| 10.00mm | 210-034100 | 210-040100 | 210-050100 | |
| 11.50mm | 210-030115 | 210-034115 | 210-040115 | 210-050115 |
| 13.00mm | 210-030130 | 210-034130 | 210-040130 | 210-050130 |
| 14.50mm | 210-034145 | 210-040145 |
Compatible Components
Components compatible with Medical Instinct® BoneTrust plus cone®
Description

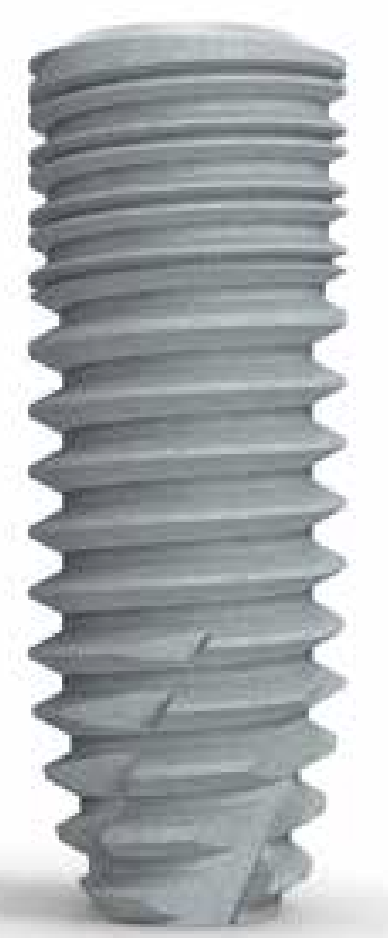

BoneTrust plus cone is a standard dental implant produced by Medical Instinct. It's a bone level implant. Its connection is internal, with a six lobe shape with morse taper. Its body is tapered with v shaped threads. Its head is straight and has microthreads. Its head has a bevel. Its apex has a dome shape, doesn't have a hole, and has grooves. It is available in 4 different diameters and 6 different lengths. This implant model is fairly recent. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. Medical Instinct also offers 10 other implant models.
Components compatible with Medical Instinct® BoneTrust plus cone®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers.
Available for different platforms.
