BoneTrust plus hex By Medical Instinct®
Technical Features
Identify a dental implant
Learn moreScrewdriver
Dimensions
| Length \ Diameter | 3.00mm | 3.40mm | 4.00mm | 5.00mm |
|---|---|---|---|---|
| 6.50mm | 200-034065 | 200-040065 | 200-050065 | |
| 8.00mm | 200-034080 | 200-040080 | 200-050080 | |
| 10.00mm | 200-034100 | 200-040100 | 200-050100 | |
| 11.50mm | 200-030115 | 200-034115 | 200-040115 | 200-050115 |
| 13.00mm | 200-030130 | 200-034130 | 200-040130 | 200-050130 |
| 14.50mm | 200-034145 | 200-040145 |
Compatible Components
Components compatible with Medical Instinct® BoneTrust plus hex®
Description

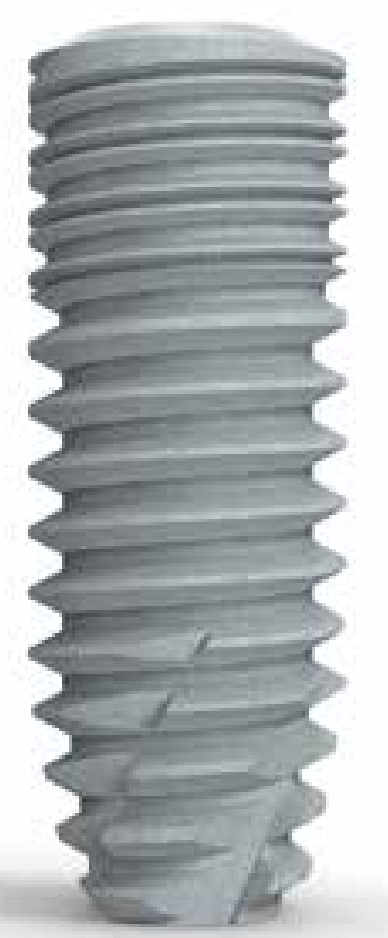

BoneTrust plus hex is a standard dental implant produced by Medical Instinct. It's a bone level implant. Its connection is internal, with a hexagon shape with none. Its head is straight and has microthreads. Its head has a bevel. Its body is tapered with v shaped threads. Its apex has a dome shape, doesn't have a hole, and has grooves. It is available in 4 different diameters and 6 different lengths. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. Medical Instinct also offers 10 other implant models.
Components compatible with Medical Instinct® BoneTrust plus hex®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers.
Available for different platforms.
