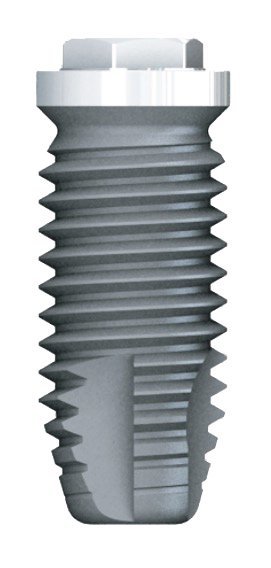

ExFeel External Hex By Megagen®

Technical Features

Level: Bone Level
Connection Type: External
Connection Shape: Hexagon
Head Shape: Wide
Head Microthreads: No
Body Shape: Straight
Body Threads: V Shaped
Apex Shape: Flat
Apex Hole: No Hole
Apex Grooves: Yes

PDF Catalog Order Compatible Components Contact us

Identify a dental implant

Learn more

Connection

External Hexagon

Screwdrivers

Platforms

small 3.5mm
regular 4.1mm
wide 5mm

Platform specifications and compatibilities

Dimensions

Length \ Diameter	3.30mm	3.75mm	4.00mm	4.50mm	5.00mm	5.50mm
7.00mm	✔(P:3.50mm)	✔(P:4.10mm)	✔(P:4.10mm)	✔(P:4.10mm)	✔(P:5.00mm)	✔(P:5.00mm)
8.50mm	✔(P:3.50mm)	✔(P:4.10mm)	✔(P:4.10mm)	✔(P:4.10mm)	✔(P:5.00mm)	✔(P:5.00mm)
10.00mm	✔(P:3.50mm)	✔(P:4.10mm)	✔(P:4.10mm)	✔(P:4.10mm)	✔(P:5.00mm)	✔(P:5.00mm)
11.50mm	✔(P:3.50mm)	✔(P:4.10mm)	✔(P:4.10mm)	✔(P:4.10mm)	✔(P:5.00mm)	✔(P:5.00mm)
13.00mm	✔(P:3.50mm)	✔(P:4.10mm)	✔(P:4.10mm)	✔(P:4.10mm)	✔(P:5.00mm)	✔(P:5.00mm)
15.00mm	✔(P:3.50mm)	✔(P:4.10mm)	✔(P:4.10mm)	✔(P:4.10mm)	✔(P:5.00mm)	✔(P:5.00mm)

Compatible Components

Components compatible with Megagen® ExFeel External Hex®

Browse compatible components

Description

ExFeel External Hex is a standard dental implant produced by Megagen. Its connection is external, with a hexagon shape with none. It's a bone level implant. Its body is straight with v shaped threads. Its head is wide. Its apex has a flat shape, doesn't have a hole, and has grooves. It is available in 6 different diameters and 6 different lengths.It is available in 3 different platforms. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. Megagen also offers 18 other implant models.
Specs:
Small Regular Wide Fixture Mount Hex Dimension 2.4 2.7 D2 Platform Diameter Ø3.5 Ø4.1 Ø5.0 Thread D1 Diameter Ø3.3 Ø3.75 Ø4.0 Ø4.5 Ø5.0 Ø5.5 L Fixture Length 7.0 / 8.5 / 10.0 / 11.5 / 13.0 / 15.0mm

Components compatible with Megagen® ExFeel External Hex®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
