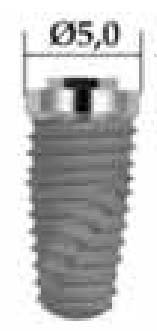

Microtech Innovazione Conical main image

Innovazione Conical By Microtech®

Technical Features

Level: Bone Level
Connection Type: External
Connection Shape: Hexagon
Head Shape: Wide
Head Microthreads: No
Body Shape: Tapered
Body Threads: V Shaped
Apex Shape: Dome
Apex Hole: No Hole
Apex Grooves: Yes

PDF Catalog Order Compatible Components Contact us

Identify a dental implant

Learn more

Connection

External Hexagon

Platforms

3.4mm
4.1mm
5mm
6mm

Platform specifications and compatibilities

Dimensions

Length \ Diameter	3.25mm	3.75mm	4.00mm	5.00mm	6.00mm
8.50mm	30058(P:3.40mm)	30064	30071	30077	30082
10.00mm	30059(P:3.40mm)	30065	30072	30078	30083
11.50mm	30060(P:3.40mm)	30066	30073	30079	30084
13.00mm	30061(P:3.50mm)	30067	30074	30080	30085
15.00mm	30062(P:3.50mm)	30068	30075	30081

Compatible Components

Components compatible with Microtech® Innovazione Conical®

Browse compatible components

Description

Innovazione Conical is a standard dental implant produced by Microtech. Its connection is external, with a hexagon shape with none. It's a bone level implant. Its head is wide. Its body is tapered with v shaped threads. Its apex has a dome shape, doesn't have a hole, and has grooves. It is available in 5 different diameters and 5 different lengths.It is available in 4 different platforms. For more details, please refer to the catalog. Microtech also offers 7 other implant models.
Specs:
CONICAL IMPLANT PLATFORM 0 4,1/5,0/60 mm Ø4,1 h 0 3,75 Ø 4,0 COD COD 02,7 h0,7 8,5 30064 30071 T 10 30065 30072 11,5 30066 30073 13 30067 30074 15 30068 30075 € 70.00 CONICAL IMPLANT PLATFORM 0 3,4 mm Ø3,4 h Ø3,25 02,5 COD 8,5 30058 T 10 30059 11,5 30060 h 13 30061 - 15 30062 € 70. 00 0 Ø5,0 h 0 5,0 0 6,0 COD COD 8,5 30077 30082 10 30078 30083 11,5 30079 30084 13 30080 30085 15 30081 € 70.00

Components compatible with Microtech® Innovazione Conical®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
