Minivent By Microtech®

Technical Features

Material: CP Titanium
Level: Tissue Level
Connection Type: Internal
Connection Shape: Hexagon
Head Shape: Flared
Head Microthreads: No
Body Shape: Straight
Body Threads: V Shaped
Apex Shape: Flat
Apex Hole: No Hole
Apex Grooves: Yes

PDF Catalog Order Compatible Components Contact us

Identify a dental implant

Learn more

Platforms

3.5mm
4.7mm
5.7mm

Platform specifications and compatibilities

Dimensions

Length \ Diameter	2.90mm	3.30mm	3.70mm	4.20mm	4.70mm	5.70mm
8.00mm	12908	13308	13708	14208	14708	15708
10.00mm	12910	13310	13710	14210	14710	15710
11.50mm	121115	133115	137115	142115	147115	157115
13.00mm	12913	13313	13713	14213	14713	15713
15.00mm	12915	13315	13715	14215	14715	15715

Compatible Components

Components compatible with Microtech® Minivent®

Browse compatible components

Description

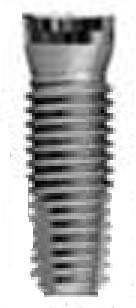

Minivent is a standard dental implant produced by Microtech. Its connection is internal, with a hexagon shape with internal bevel. It's a tissue level implant. Its body is straight with v shaped threads. Its head is flared. Its apex has a flat shape, doesn't have a hole, and has grooves. It is made of cp titanium. It is available in 6 different diameters and 5 different lengths.It is available in 3 different platforms. For more details, please refer to the catalog. Microtech also offers 7 other implant models.
Specs:
2,4mm € 60.00 IMPLANIS CILINDRICAL INIERNAL HEXAGON T 0 2,9 0 3,3 0 3,7 0 4,2 0 4,7 Ø 5,7 h COD. COD. COD. COD. COD. COD. 8,0 12908 3308 3708 14208 14708 15708 h 10,0 12910 13310 3710 14210 14710 15710 11,5 21115 33115 37115 142115 147115 157115 13,0 2913 3313 13713 14213 14713 15713 15,0 2915 13315 3715 14215 4715 5715 0 Ø 0 € 60.00 PROFILE 0 2,9-3,3-3,7-42 0 4,7 0 5,7 PROFILO EMERG. EMERG. h 3,0 h 5,0 h 3,0 h 5,0 h 3,0 h 5,0 RETAINNGSORES € 20.00 0 CONF. COD. COD. COD. COD. COD. COD. 2 PIECES 3,5 373035 375035 - - - - COD. R 018 4,5 373045 375045 - - - - 5,5 - - 473055 475055 - - o IMP. 6,5 - - 473065 475065 473065 475065 7,5 - - - - 473075 475075

Components compatible with Microtech® Minivent®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
