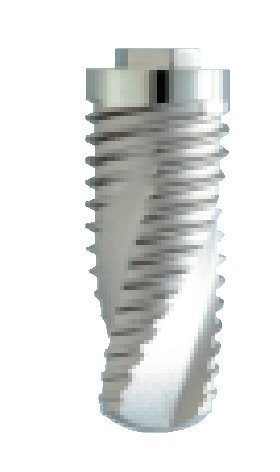

Lance External hexagon By MIS®

Technical Features

Material: CP Titanium
Level: Bone Level
Connection Type: External
Connection Shape: Hexagon
Head Shape: Wide
Head Microthreads: No
Body Shape: Tapered
Body Threads: Buttress
Apex Shape: Dome
Apex Hole: No Hole
Apex Grooves: Yes

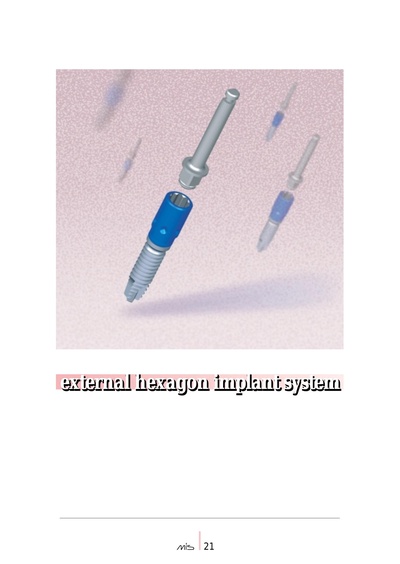

PDF Catalog Order Compatible Components Contact us

Identify a dental implant

Learn more

Connection

External Hexagon

Screwdriver

Platforms

standard 4.1mm
wide 5mm

Platform specifications and compatibilities

Dimensions

Length \ Diameter	3.75mm	5.00mm
10.00mm		✔(P:5.00mm)
13.00mm	✔(P:4.10mm)

Compatible Components

Components compatible with MIS® Lance External hexagon®

Browse compatible components

Description

Lance External hexagon is a standard dental implant produced by MIS. It's a bone level implant. Its connection is external, with a hexagon shape with none. Its head is wide. Its body is tapered with buttress threads. Its apex has a dome shape, doesn't have a hole, and has grooves. It is made of cp titanium. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. MIS also offers 18 other implant models.

Components compatible with MIS® Lance External hexagon®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
