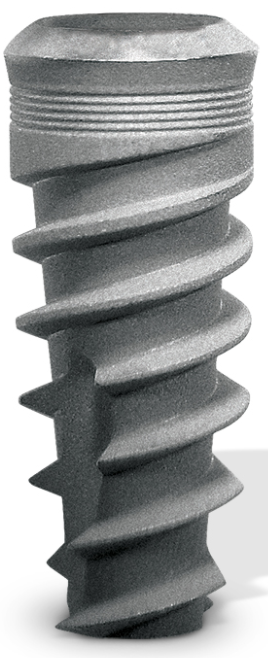

ARTION By Novamind®

Technical Features

Level: Bone Level
Connection Type: Internal
Connection Shape: Hexagon
Head Shape: Flared
Head Microthreads: Yes
Body Shape: Tapered
Body Threads: V Shaped
Apex Shape: Flat
Apex Hole: No Hole
Apex Grooves: Yes

Order Compatible Components Contact us Manufacturer Page

Identify a dental implant

Learn more

Connection

Internal Hexagon

Dimensions

Length \ Diameter	3.50mm	4.00mm	4.50mm	5.00mm
8.00mm	IMP.06.350.08	IMP.06.400.08	IMP.06.450.08	IMP.06.500.08
10.00mm	IMP.06.350.10	IMP.06.400.10	IMP.06.450.10	IMP.06.500.10
11.50mm	IMP.06.350.11	IMP.06.400.11	IMP.06.450.11	IMP.06.500.11
13.00mm	IMP.06.350.13	IMP.06.400.13	IMP.06.450.13	IMP.06.500.13

Compatible Components

Components compatible with Novamind® ARTION®

Browse compatible components

Description

ARTION is a standard dental implant produced by Novamind. Its connection is internal, with a hexagon shape with internal bevel. It's a bone level implant. Its head is flared and has microthreads. Its head has a bevel. Its body is tapered with v shaped threads. Its apex has a flat shape, doesn't have a hole, and has grooves. It is available in 4 different diameters and 4 different lengths. We don't have a catalog available for this model. Novamind also offers 7 other implant models.

Components compatible with Novamind® ARTION®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
