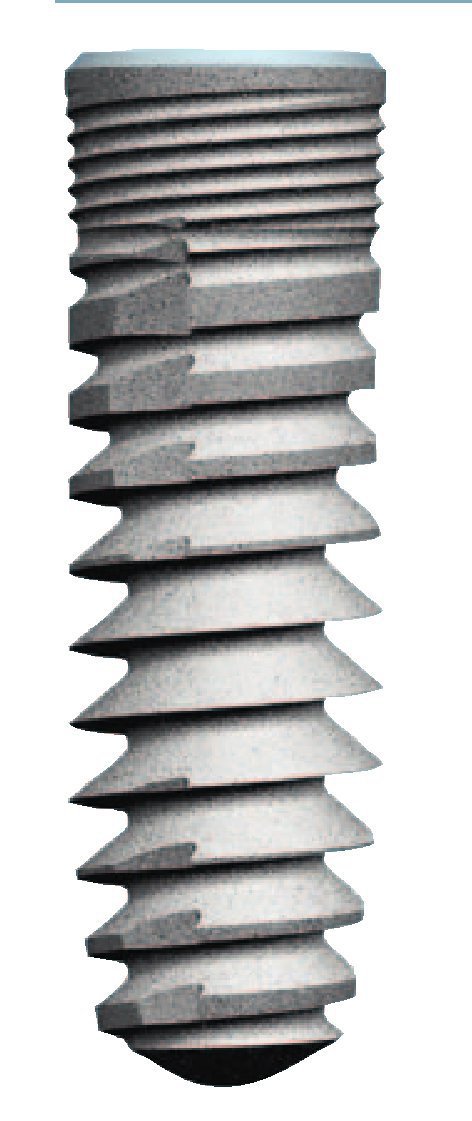

OT-F1 (FIT) main image

OT-F1 (FIT) By OT medical®

Technical Features

Identify a dental implant

Learn more

Connection

Internal Hexagon

Screwdriver

screwdriver icon

Platforms

  • 3.3mm
  • 3.4mm
  • 3.8mm
  • 4.1mm
  • 4.9mm
  • 5mm
Platform specifications and compatibilities

Dimensions

Length \ Diameter 3.30mm 3.40mm 3.80mm 4.10mm 4.90mm 5.00mm
8.00mm
10.00mm
12.00mm
14.00mm
16.00mm

Compatible Components

Components compatible with OT medical® OT-F1 (FIT)®

Browse compatible components

Description

OT-F1 (FIT) is a standard dental implant produced by OT medical. It's a bone level implant. Its connection is internal, with a hexagon shape with internal bevel. Its head is straight and has microthreads. Its body is tapered with reverse buttress threads. Its apex has a dome shape, doesn't have a hole, and has grooves. It is made of cp titanium. It is available in 6 different diameters and 5 different lengths.It is available in 6 different platforms. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. OT medical also offers 5 other implant models.
Specs:
Fit2 Implants Diameter Length Article No. 3.40 mm 8 mm 02-1342080000 3.40 mm 10 mm 02-1342100000 3.40 mm 12 mm 02-1342120000 3.40 m m 14 mm 02-1342140000 3.40 m m 16 mm 02-1342160000 3.80 mm 8 mm 02-1382080000 3.80 mm 10 mm 02-1382100000 3.80 mm 12 mm 02-1382120000 3.80 mm 14 mm 02-1382140000 3.80 mm 16 mm 02-1382160000 4.10 mm 8 mm 02-1412080000 4.10 mm 10 mm 02-1412100000 4.10 mm 12 mm 02-1412120000 4.10 mm 14 mm 02-1412140000 4.10 mm 16 mm 02-1412160000 5.00 mm 8 mm 02-1502080000 5.00 mm 10mm 02-1502100000 5.00 mm 12mm 02-1502120000 5.00 mm 14mm 02-1502140000 BASICLINE Incl. Screw Diameter Gingiva height Article No. 3.30 mm 0° GH 1.0 mm 01-3339011500 3.80 mm 0° GH 1.0 mm 01-3389011500 4.10 mm 0° GH 1.0 mm 01-3419011500 4.90 m m 0° GH 1.0 mm 01-3499011500 3.30 mm 0° o GH 3.0 mm 01-3339031500 3.80 mm 0° GH 3.0 mm 01-3389031500 4.10 mm 0° GH 3.0 mm 01-3419031500 4.90 mm 0° GH 3.0 mm 01-3499031500 3.30 mm 15° GH 1.0 mm 01-3339011100 4 4 3.80 mm 15° GH 1.0 mm 01-3389011100 4.10 mm 15° G…

Components compatible with OT medical® OT-F1 (FIT)®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
