OT-F3 (FIT-OT3) By OT medical®

Technical Features

Material: Titanium Alloy
Level: Bone Level
Connection Type: Internal
Connection Shape: Eight lobe
Head Shape: Straight
Head Microthreads: No
Body Shape: Tapered
Body Threads: No Threads
Apex Shape: Flat
Apex Hole: No Hole
Apex Grooves: No

PDF Catalog Order Compatible Components Contact us Manufacturer Page

Identify a dental implant

Learn more

Screwdriver

Platforms

3.8mm
4.1mm
5mm

Dimensions

Length \ Diameter	3.80mm	4.10mm	5.00mm
5.00mm		03-1413050010 03-1413050000	03-1503050010 03-1503050000
7.00mm	03-1383070000 03-1383070010	03-1413070010 03-1413070000	03-1503070010 03-1503070000
9.00mm	03-1383090010 03-1383090000	03-1413090000 03-1413090010	03-1503090010

Compatible Components

Components compatible with OT medical® OT-F3 (FIT-OT3)®

Browse compatible components

Description

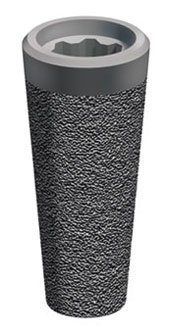

OT-F3 (FIT-OT3) is a standard dental implant produced by OT medical. It's a bone level implant. Its connection is internal, with a eight lobe shape with morse taper. Its head is straight. Its body is tapered and doesn't have threads. Its apex has a flat shape, doesn't have a hole, and doesn't have grooves. It is made of titanium alloy. It is available in 3 different diameters .It is available in 3 different platforms. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. OT medical also offers 5 other implant models.
Specs:
FIT-OT³Implants Diameter Length Article No. 3.80 mm 7 mm 03-1383070000 3.80 mm 9 mm 03-1383090000 4.10 mm 5 mm 03-1413050000 4.10 mm 7 mm 03-1413070000 4.10 mm 9 mm 03-1413090000 5.00 mm 5 mm 03-1503050000 5.00 mm 7 mm 03-1503070000

Components compatible with OT medical® OT-F3 (FIT-OT3)®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
