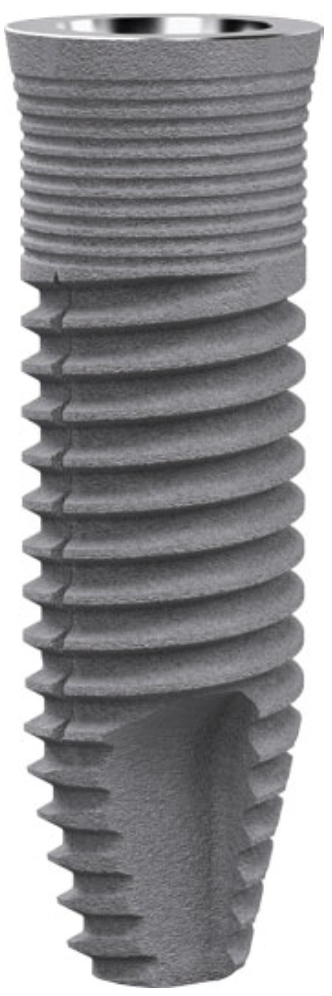

Modern Morse Taper By P-I Branemark Philosophy®
Technical Features
- Level: Bone Level
- Connection Type: Internal
- Connection Shape: Hexagon
- Head Shape: Flared
- Head Microthreads: Yes
- Body Shape: Tapered Apex
- Body Threads: V Shaped
- Apex Shape: Dome
- Apex Hole: No Hole
- Apex Grooves: Yes
Identify a dental implant
Learn moreScrewdriver
Dimensions
| Length \ Diameter | 3.30mm | 3.75mm | 4.80mm |
|---|---|---|---|
| 10.00mm |
171004(P:3.50mm)
171033(P:3.50mm) |
171041(P:4.10mm)
171013(P:4.10mm) |
171049(P:5.10mm)
171023(P:5.10mm) |
| 11.50mm |
171005(P:3.50mm)
171034(P:3.50mm) |
171042(P:4.10mm)
171014(P:4.10mm) |
171050(P:5.10mm)
171024(P:5.10mm) |
| 13.00mm |
171035(P:3.50mm)
171006(P:3.50mm) |
171015(P:4.10mm)
171043(P:4.10mm) |
171025(P:5.10mm)
171051(P:5.10mm) |
| 15.00mm |
171007(P:3.50mm)
171036(P:3.50mm) |
171016(P:4.10mm)
171044(P:4.10mm) |
Compatible Components
Components compatible with P-I Branemark Philosophy® Modern Morse Taper®
Description
Modern Morse Taper is a standard dental implant produced by P-I Branemark Philosophy. Its connection is internal, with a hexagon shape with morse taper. It's a bone level implant. Its head is flared and has microthreads. Its body is tapered apex with v shaped threads. Its apex has a dome shape, doesn't have a hole, and has grooves. It is available in 3 different diameters and 4 different lengths. It requires a screwdriver of hexagon shape. We don't have a catalog available for this model. P-I Branemark Philosophy also offers 5 other implant models.
Specs:
0 Platform 3.5 4.1 5.1 3.5 4.1 5.1 Ø Implant 3.3 3.75 4.8 3.3 3.75 4.8 10 171033 171041 171049 171004 171013 171023 11.5 171034 171042 171050 171005 171014 171024 13 171035 171043 171051 171006 171015 171025 15 171036 171044 171007 171016
Components compatible with P-I Branemark Philosophy® Modern Morse Taper®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers.
Available for different platforms.
