Phea By Radhex®

Technical Features

Level: Tissue Level
Connection Type: External
Connection Shape: Hexagon
Head Shape: Flared
Head Microthreads: No
Body Shape: Tapered
Body Threads: V Shaped
Apex Shape: Dome
Apex Hole: No Hole
Apex Grooves: Yes

PDF Catalog Order Compatible Components Contact us Manufacturer Page

Identify a dental implant

Learn more

Connection

External Hexagon

Dimensions

Length \ Diameter	3.50mm	3.75mm	4.00mm	4.50mm	5.00mm	6.00mm
6.00mm			PHEA410-0640(P:4.10mm)	PHEA410-0645(P:4.10mm)	PHEA410-0650(P:4.10mm)	PHEA410-0660(P:4.10mm)
8.00mm	PHEA410-0835(P:4.10mm)	PHEA410-0837(P:4.10mm)	PHEA410-0840(P:4.10mm)	PHEA410-0845(P:4.10mm)	PHEA410-0850(P:4.10mm)	PHEA410-0860(P:4.10mm)
10.00mm	PHEA410-1035(P:4.10mm)	PHEA410-1037(P:4.10mm)	PHEA410-1040(P:4.10mm)	PHEA410-1045(P:4.10mm)	PHEA410-1050(P:4.10mm)	PHEA410-1060(P:4.10mm)
12.00mm	PHEA410-1235(P:4.10mm)	PHEA410-1237(P:4.10mm)	PHEA410-1240(P:4.10mm)	PHEA410-1245(P:4.10mm)	PHEA410-1250(P:4.10mm)
14.00mm	PHEA410-1435(P:4.10mm)	PHEA410-1437(P:4.10mm)	PHEA410-1440(P:4.10mm)	PHEA410-1445(P:4.10mm)	PHEA410-1450(P:4.10mm)
16.00mm	PHEA410-1635(P:4.10mm)	PHEA410-1637(P:4.10mm)	PHEA410-1640(P:4.10mm)	PHEA410-1645(P:4.10mm)	PHEA410-1650(P:4.10mm)
18.00mm		PHEA410-1837(P:4.10mm)	PHEA410-1840(P:4.10mm)	PHEA410-1845(P:4.10mm)	PHEA410-1850(P:4.10mm)

Compatible Components

Components compatible with Radhex® Phea®

Browse compatible components

Description

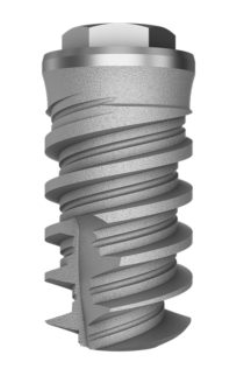

Phea is a standard dental implant produced by Radhex. Its connection is external, with a hexagon shape with none. It's a tissue level implant. Its head is flared. Its head has a bevel. Its body is tapered with v shaped threads. Its apex has a dome shape, doesn't have a hole, and has grooves. It is available in 6 different diameters and 7 different lengths. For more details, please refer to the catalog. Radhex also offers 14 other implant models.

Components compatible with Radhex® Phea®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers. Available for different platforms.
