Trias By Servo-Dental®
Technical Features
- Level: Bone Level
- Connection Type: Internal
- Connection Shape: Octagon
- Head Shape: Straight
- Head Microthreads: Yes
- Body Shape: Tapered
- Body Threads: Reverse Buttress
- Apex Shape: Dome
- Apex Hole: No Hole
- Apex Grooves: Yes
Identify a dental implant
Learn moreScrewdriver
Dimensions
| Length \ Diameter | 3.30mm | 3.80mm | 4.40mm | 5.00mm |
|---|---|---|---|---|
| 8.00mm | 38008(TRA/TX)(P:3.80mm) | 44008TRA/44008TX(P:4.40mm) | 50008(TRA/TX)(P:5.00mm) | |
| 10.00mm | 33010(TRA/TX)(P:3.30mm) | 38010(TRA/TX)(P:3.80mm) | 44010TRA/44010TX)(P:4.40mm) | |
| 12.00mm | 33012(TRA/TX)(P:3.30mm) | 38012(TRA/TX)(P:3.80mm) | 44012TRA/44012TX)(P:4.40mm) | |
| 14.00mm | 33014(TRA/TX)(P:3.30mm) | 38014(TRA/TX)(P:3.80mm) | 44014TRA/44014TX)(P:4.40mm) | |
| 16.00mm | 33016(TRA/TX)(P:3.30mm) | 38016(TRA/TX)(P:3.80mm) | 44016TRA/44016TX)(P:4.40mm) |
Description
Trias is a standard dental implant produced by Servo-Dental. Its connection is internal, with a octagon shape with morse taper. It's a bone level implant. Its body is tapered with reverse buttress threads. Its head is straight and has microthreads. Its apex has a dome shape, doesn't have a hole, and has grooves. It is available in 4 different diameters and 5 different lengths. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. Servo-Dental also offers 5 other implant models.

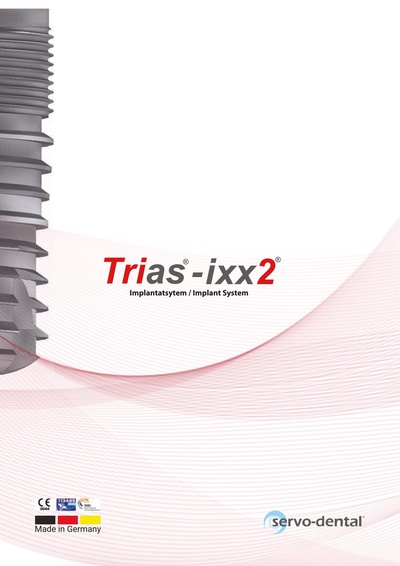

Catalogs
