P7N By SGS Dental®

Technical Features

Material: Titanium Alloy
Level: Bone Level
Connection Type: Internal
Connection Shape: Hexagon
Head Shape: Straight
Head Microthreads: Yes
Body Shape: Tapered
Body Threads: V Shaped
Apex Shape: Flat
Apex Hole: No Hole
Apex Grooves: Yes

PDF Catalog Manufacturer Page

Identify a dental implant

Learn more

Screwdriver

Platforms

default

Dimensions

Length \ Diameter	3.00mm	3.20mm
2.00mm	✔
2.20mm		✔
10.00mm	✔	✔
11.50mm	✔	✔
13.00mm	✔	✔
16.00mm	✔	✔

Description

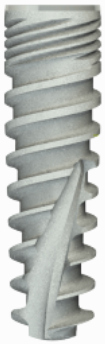

P7N is a standard dental implant produced by SGS Dental. It's a bone level implant. Its connection is internal, with a hexagon shape with morse taper. Its body is tapered with v shaped threads. Its head is straight and has microthreads. Its head has a bevel. Its apex has a flat shape, doesn't have a hole, and has grooves. It is made of titanium alloy. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. SGS Dental also offers 12 other implant models.
Specs:
D1 mm 3.0 mm 3.2 mm DIT - - - - 10 mm 10 mm L 11.5 mm 11.5 mm 13 mm 13 mm D2 16 mm 16 mm D2 mm 2.0 mm 2.2 mm
